6.86inch display for smart home resolution 350

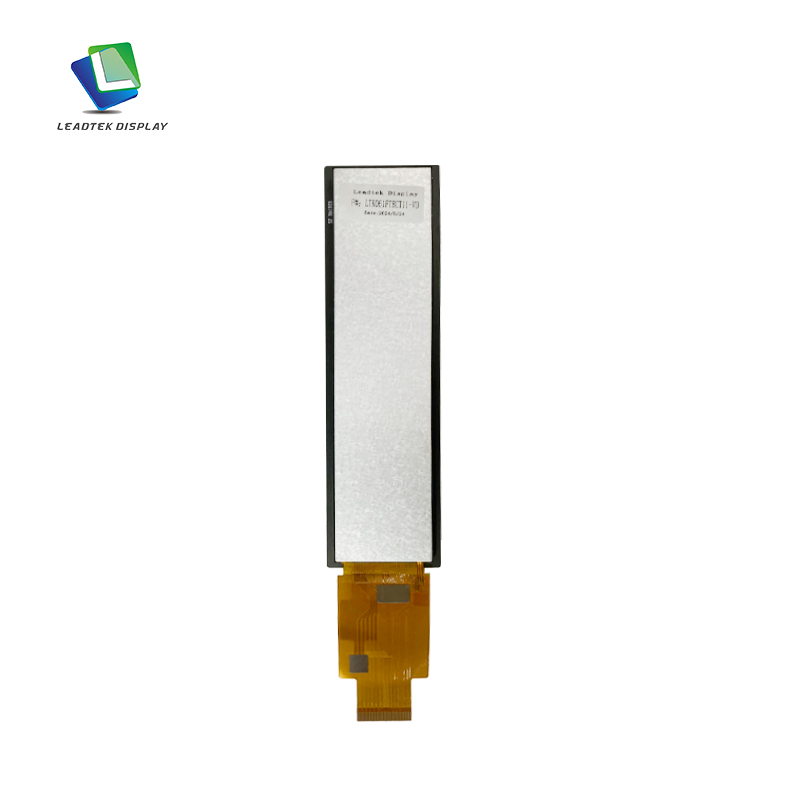

The LTK061FTBCT11-V0 LCD display boasts a high resolution of 280 x RGB x 1424 pixels and utilizes MIPI interface technology, ensuring vibrant images with precise clarity. Measuring 29.99mm (W) x 152.51mm (H), the display is housed in a compact frame of 41.79mm (W) x 169.51mm (H) x 6.39mm (T). Featuring a capacitive touch panel (CTP), it operates reliably in temperatures ranging from -20℃ to +70℃ (storage: -30℃ to +80℃), suitable for a wide range of industrial and consumer electronics applications.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 6.1 |
| Part Number. | LTK061FTBCT11-V0 |
| Display Mode | IPS |
| Resolution | 280 * RGB * 1424 |
| Interface | MIPI |
| Luminance (cd/m²) | 350 |
| Active Area (mm) | 29.99*152.51 |
| Outline Dimension (mm) | 41.79*169.51*6.39 |
| Touch Screen | CTP |
| Operating Temp | -20℃~ +70℃ |
| Storage Temp | -30℃~ +80℃ |

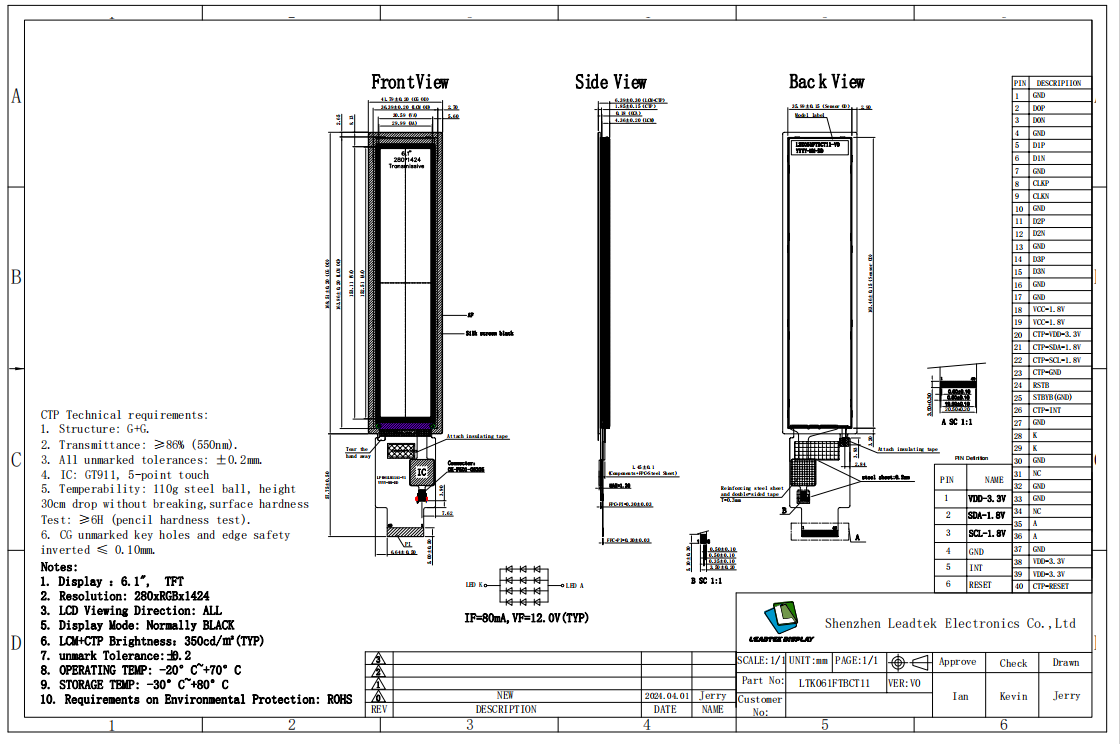

PRODUCT DRAWING
