6.2" IPS Display, 360x960, UART TTL&232&485, for Medical Devices

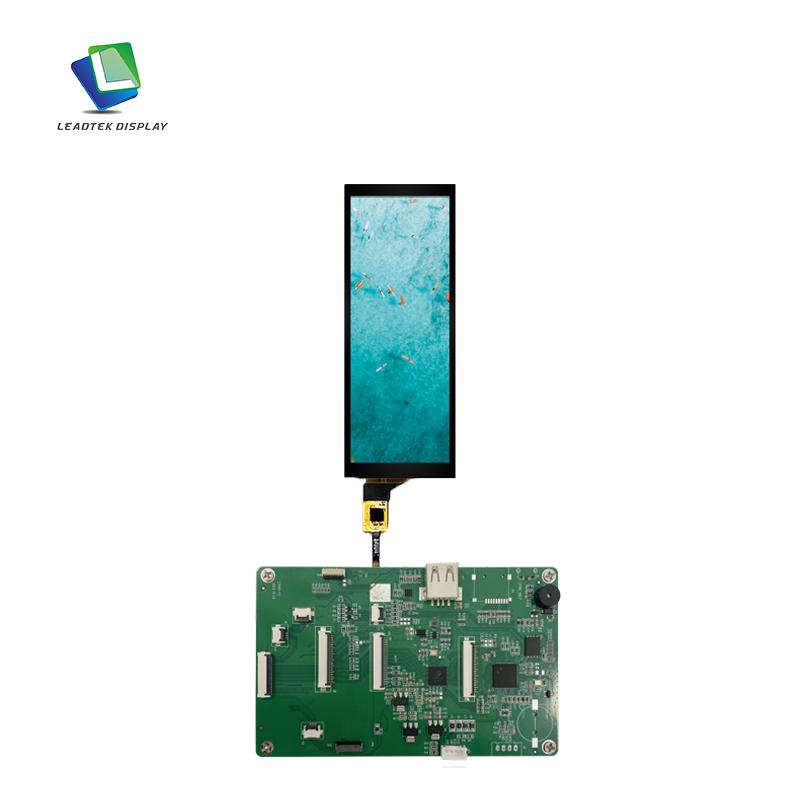

The 6.2-inch LTK062MNBUT10-V0 display is ideal for medical devices, featuring a resolution of 360x960 for clear and detailed visuals. This IPS panel ensures excellent color accuracy and wide viewing angles. It supports multiple UART interfaces including TTL, 232, and 485, providing flexibility for various applications. With a brightness of 300 cd/m² and capacitive touch functionality, it offers user-friendly operation. The display operates in temperatures from -20°C to +70°C, powered by a 5V/2A power supply, making it reliable for medical environments.
- Product Details
PRODUCT PARAMETER
PRODUCT DRAWING
| Size (inch) | 6.2 |
| Part Number. | LTK062MNBUT10-V0 |
| Display Mode | IPS |
| Resolution | 360*960 |
| Interface(System) | UART TTL&232&485 |
| Luminance (cd/m²) | 300 |
| Interface | MIPI |
| Active Area (mm) | 55.30*147.46 |
| Outline Dimension (mm) | 62.79*163.86*6.13 |
| Touch Screen | CTP |
| Power Supply | 5V/2A |
| Operating Temp | -20~+70℃ |
|
Storaging Temp |
-30~+80℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
