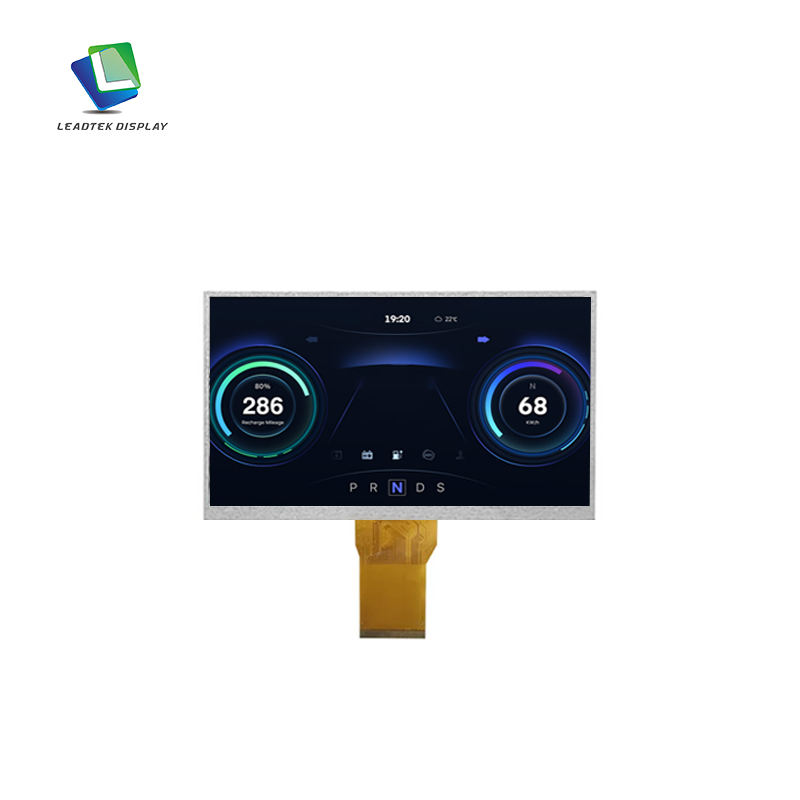

6.8 inch 1024*600 TFT LCD Rugged display Module with high 850nits
LTK068WSBLM10-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a Two-wheeler dashboard. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 6.8 inch diagonally measured active display area with (1024 horizontal by 600 vertical pixel) resolution. (E)
- Product Details
| Model number | LTK068WSBLM10-V0 |
| Size(inch) | 6.8 |
| Resolution | 1024*600 |
| Viewing Direction | IPS |
| LCD AA(mm) |
151.76*79.8 |
|
Outline dimension(mm) |
160.2*90.3*4.56 |
| Interface | LVDS |
|
Expandable interface |
MIPI/RGB |
|
Brightness (cd/m²) |
850 |
|
Operating Temp |
-30~+80℃ |
|
Storage Temp |
-30~+80℃ |
