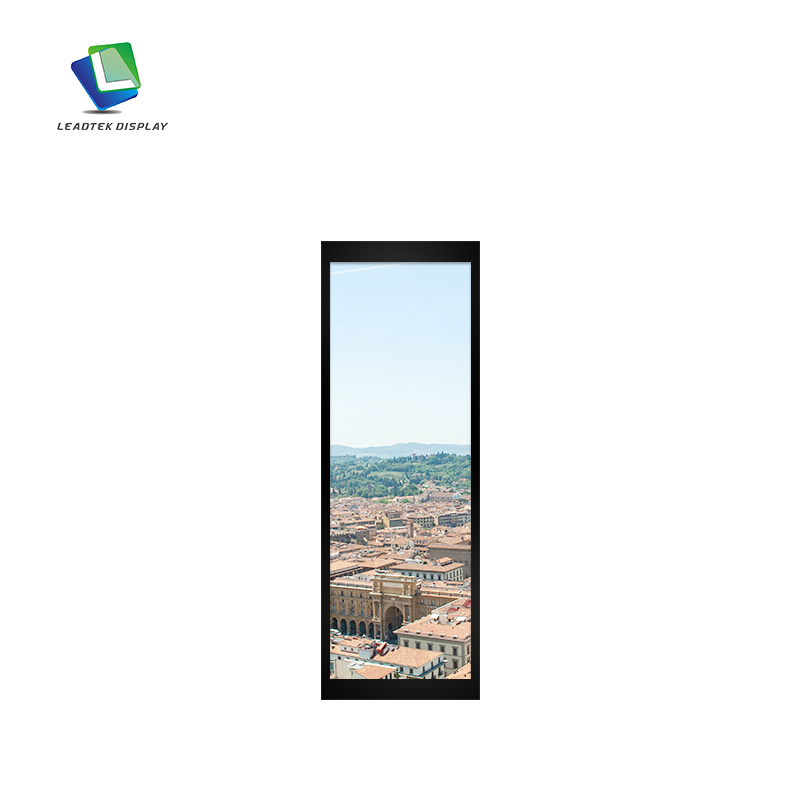

6.9 inch screen with 480*1280 Resolution IPS lcd Touch Panel
LTK069WXBCT11-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
This model is composed of a TFT LCD and a driving circuit.This TFT LCD has a 6.9 inch diagonally measured active display area with (480*1280 vertical pixel) resolution.(Ju)
This model is composed of a TFT LCD and a driving circuit.This TFT LCD has a 6.9 inch diagonally measured active display area with (480*1280 vertical pixel) resolution.(Ju)
- Product Details
Specification of 6.9 Inch LCD Screen TFT LCD Display 480*1280 IPS Panel MIPI 350 Nits LCD Touch Display
| Module No |
LTK069WXBCT11-V0 |
|
Outline Dimension |
67.00*181.40*6.28 |
|
Active Area |
60.22*160.59 |
|
Resolution |
480*1280 |
| luminance | 350 |
| interface | MIPI |
|
Driver IC |
NV3051F |
