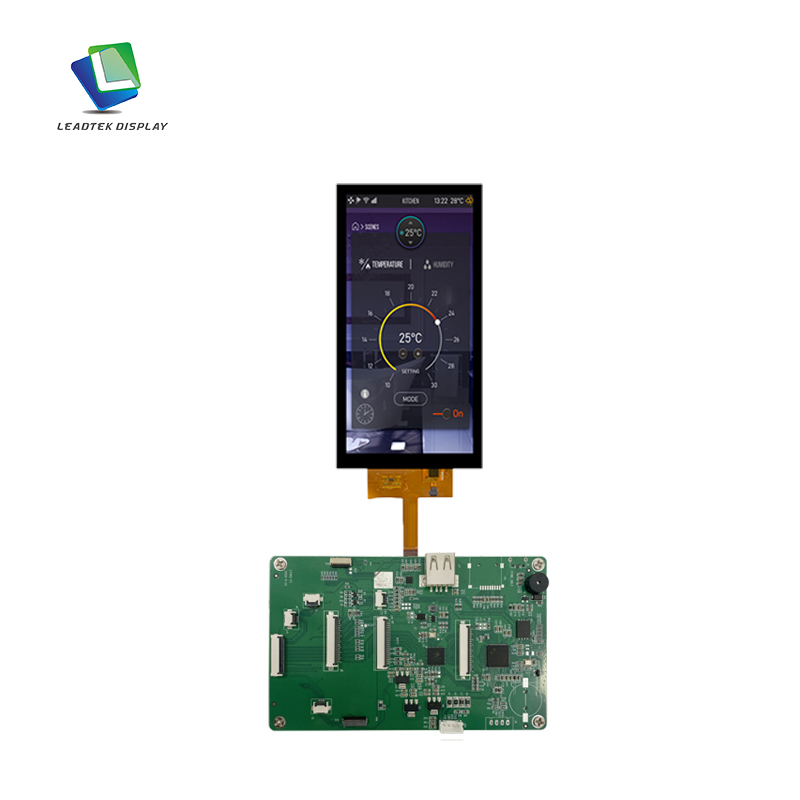

6.9 INCH Leadtek smart display for home application
This LTK069MNBUT12-V0 IPS LCD module features a resolution of 720*1440 resolution and operates via MIPI interface with a brightness of 330 cd/m². The active area measures 78.62*56.64mm, and the overall dimensions are 89.02*170.65*4.38 mm. it functions reliably in temperatures ranging from -20℃ to +70℃, Designed for smart home applications, it ensures clear, high-quality visuals and robust performance in various transportation environments.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 6.9 |
| Part Number. | LTK069MNBUT12-V0 |
| Display Mode | IPS |
| Resolution | 720*1440 |
| Interface(System) | UART TTL&232&485 |
| Power Supply | 5V/2A |
| Operating Temp | -20~+70℃ |
| Outline Dimension (mm) | 89.02*170.65*4.38 |
| Touch Screen | CTP |

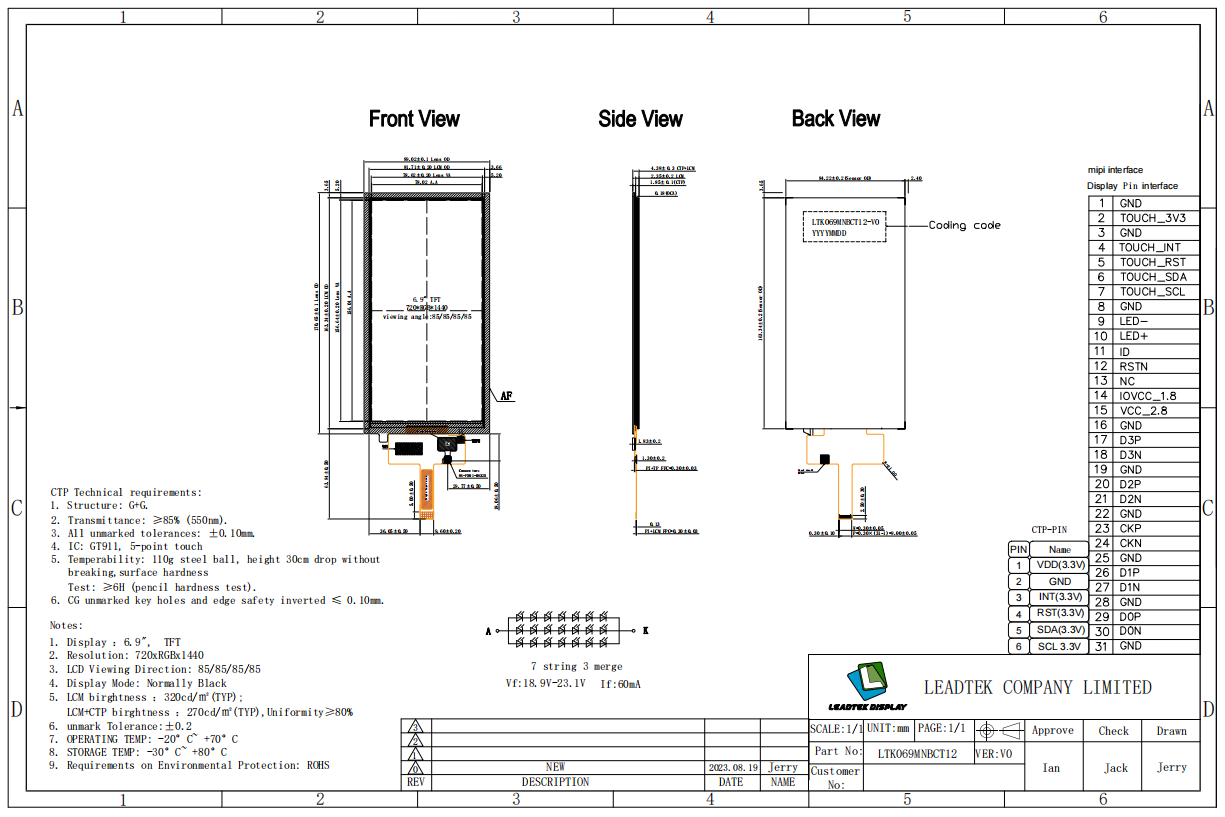

PRODUCT DRAWING
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
