6.98inch Portrait IPS 370cd/㎡(TYP) 720*1280 LCD
6.98-inch Portrait IPS LCD, model LTK070HDHLM42-V0. Features 720*1280 resolution with 4-line MIPI interface. Designed for Smart Industry applications. Brightness at 370 cd/㎡. Active area of 86.94*154.56 mm and overall dimensions of 91.44*165.91*2.35 mm.
- Product Details
Product Parameters
| Moudle no | LTK070HDHLM42-V0 |
| Resolution | 720*1280 |
| Viewing Angle | IPS |
| Active Aera (mm) | 86.94*154.56 |
| Outline Dimension (mm) | 91.44*165.91*2.35 |
| Interface | MIPI |
| Luminance | 370 |
| Operating Temp | -20~+70℃ |
| Storage Temp | -30~+80℃ |

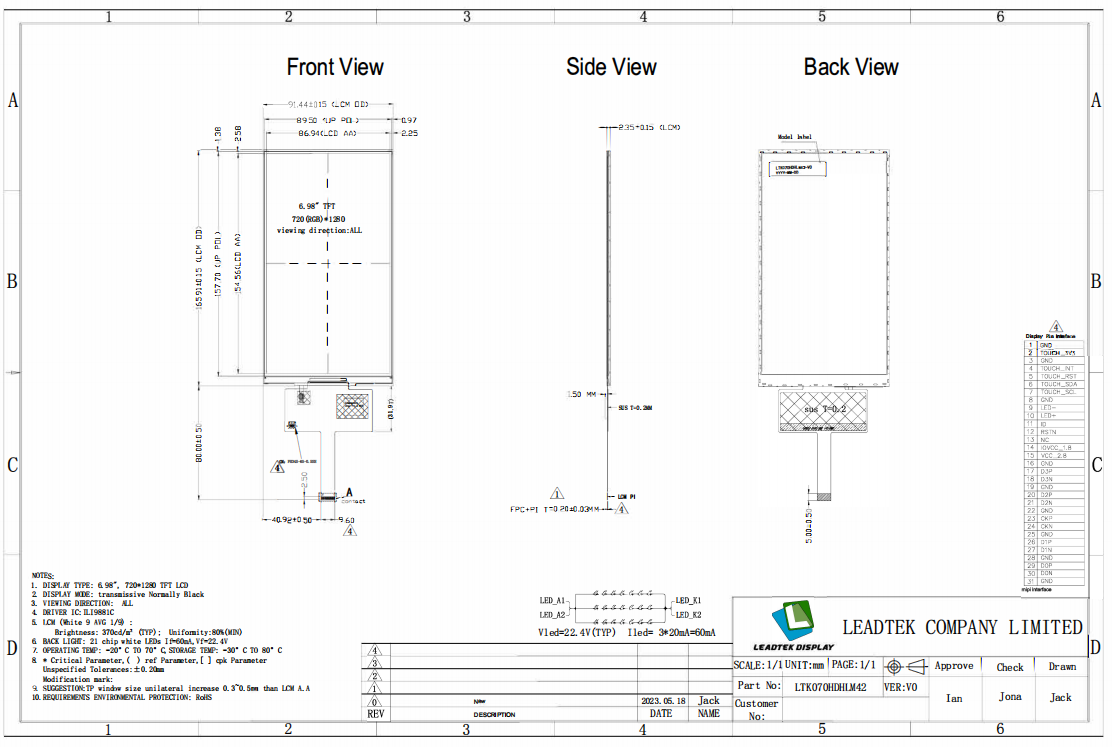

Product Drawing
