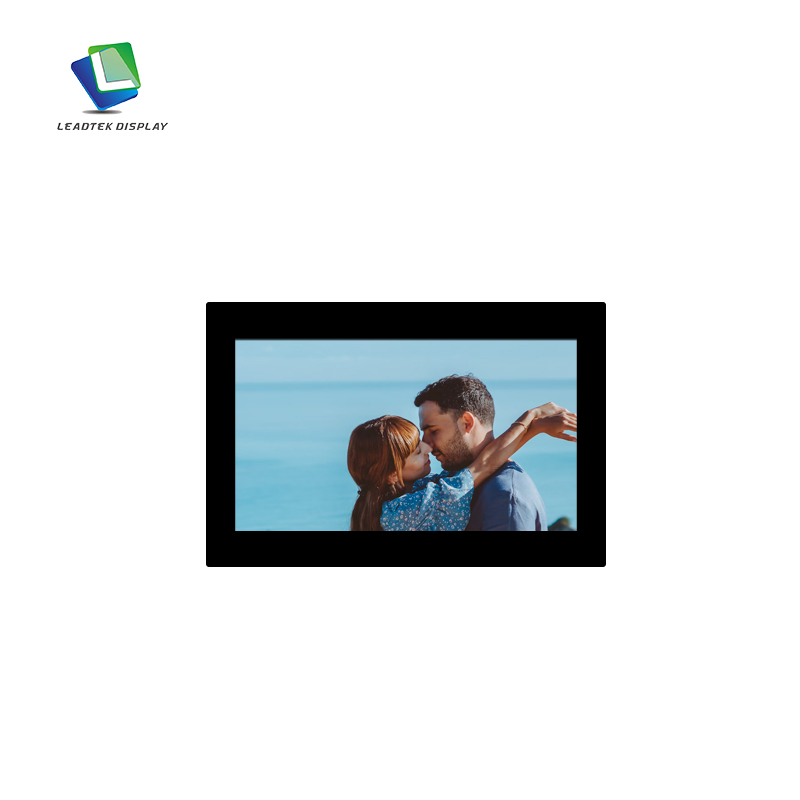

7 inch 800*480 Resolution TN display view TFT LCD Touch Display Screen use for Smart home Application
LTK070WV50CYW-02KC-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a hone control system device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 7 inch diagonally measured active display area with (800 horizontal by 480 vertical pixel) resolution. (E)
- Product Details
7 inch 800*480 Resolution TN display view TFT LCD Touch Display Screen use for Smart home Application
Product Parameters:
| Model number | LTK070WV50CYW-02KC-V0 |
| Resolution | 800*480 |
| Viewing Direction | TN |
| CTP Outline dimension(mm) |
180*119*7.44 |
| LCD AA(mm) |
154.08* 85.92 |
|
TP VA(mm) |
155.08*86.92 |
| Interface | RGB |
| Touch IC | GT911 |
| Touch Structure | G+G |
| Brightness | 200 nits |
|
Operating Temperature |
"-10~60 degree |
| Storage Temperature | "-20~70 degree |

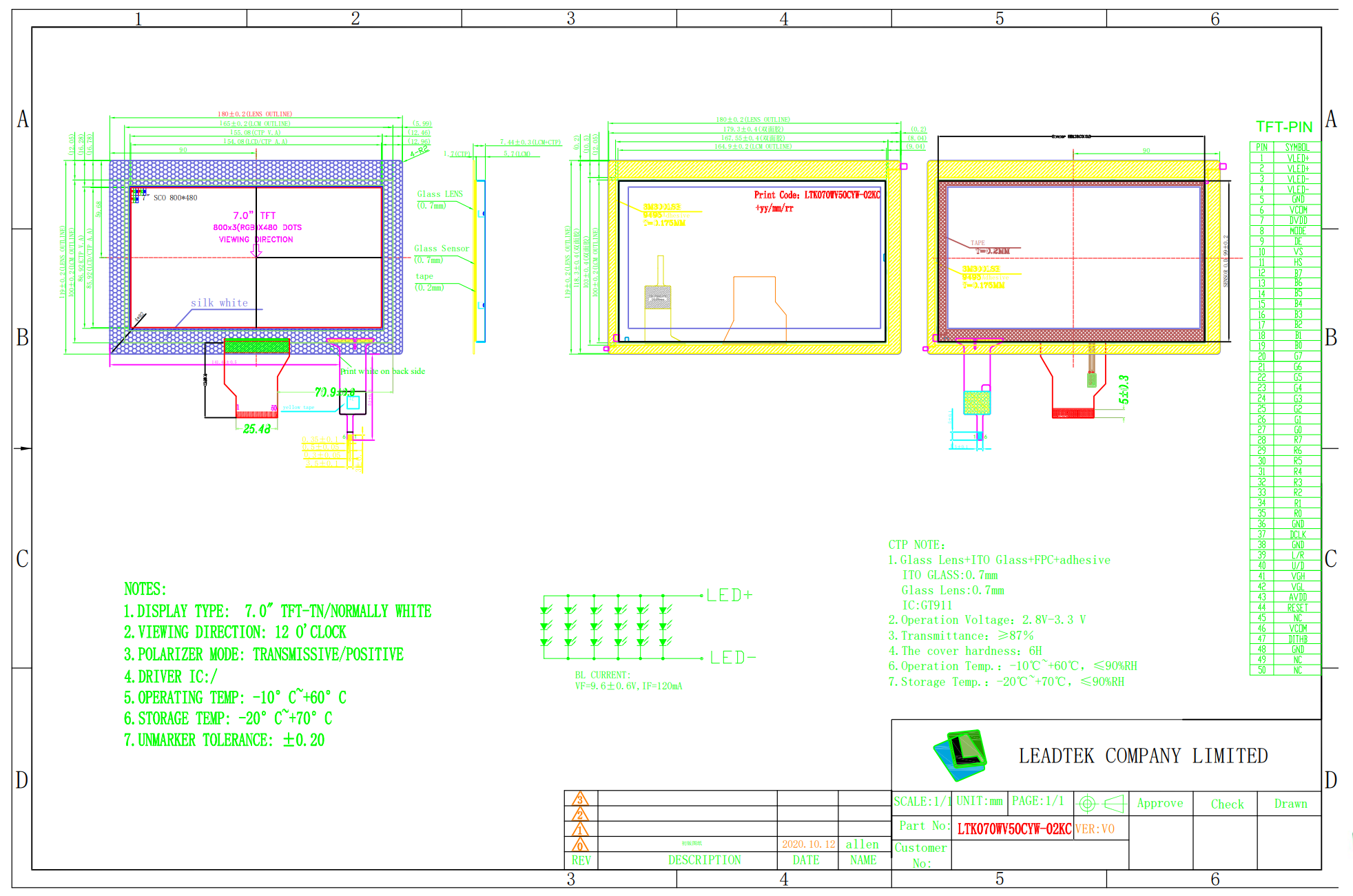

Product Drawing
