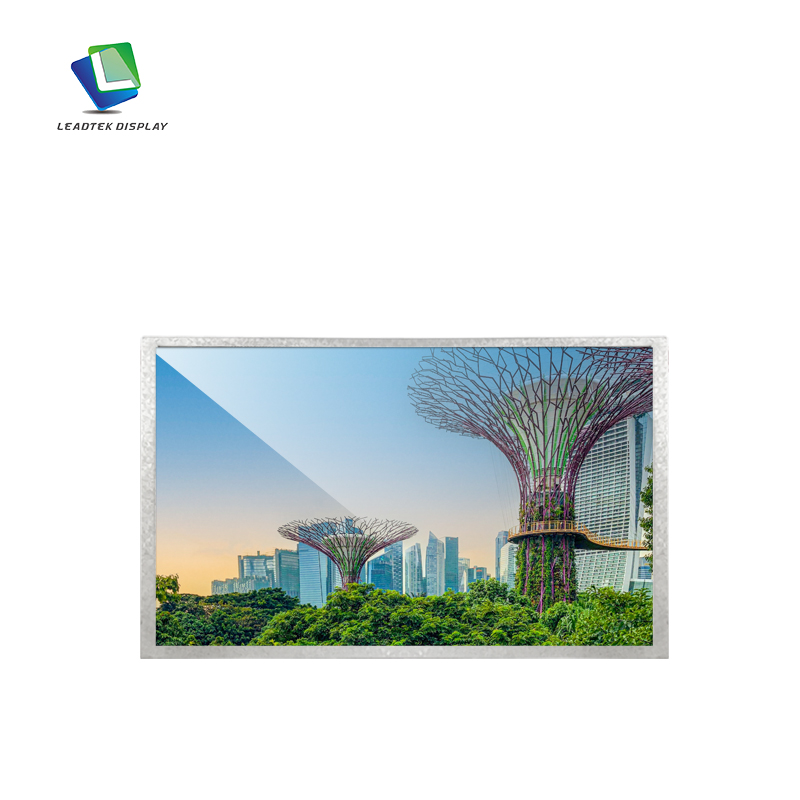

7 inch IPS LCD module with Resolution 800*1280 MIPI interface TFT LCD display panel
LTK070WX40HFM026-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit. This TFT LCD has a 7.0 inch diagonally measured active display area with (800 horizontal by 1280 vertical pixel) resolution. (D)
- Product Details
| PN# |
LTK070WX40HFM026 |
| Display type | 7 inch TFT Module |
| Display mode | IPS |
| Resolution | 800*1280 |
| Interface | MIPI |
| Brightness | 350nits |
| LCD AA |
150.72 *94.2 mm |
| LCM OD |
161.6*99.75*2.6 mm |
| Operating temperature |
-20°C~60°C |
| Storage temperature |
-30°C~70°C |
