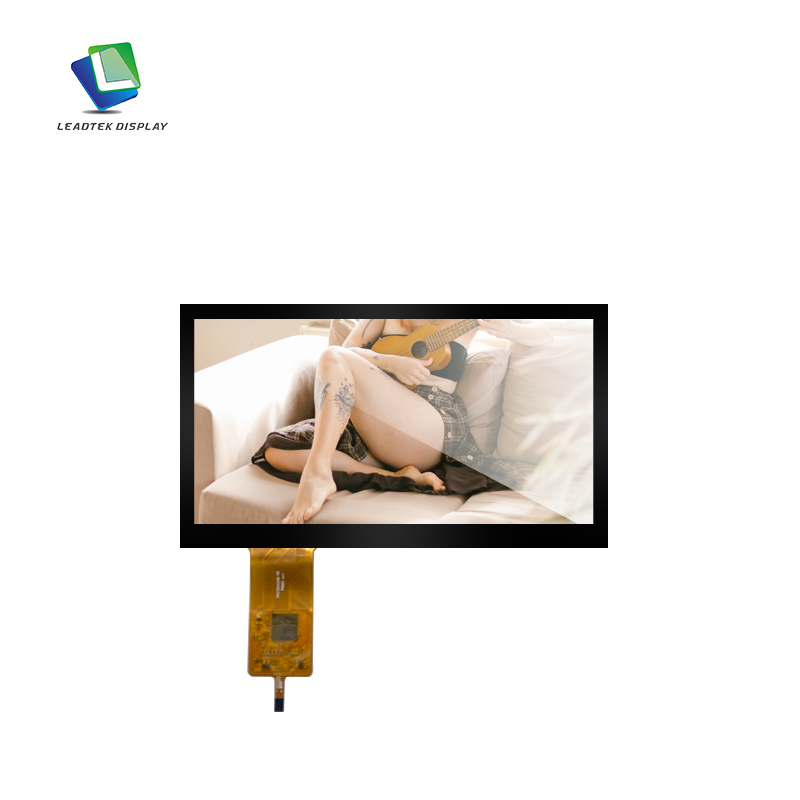

7 inch Landscape display 1024*600 TFT LCD Panel, MIPI Interface
LTK070P3078W-06KC-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.This TFT LCD has a 7 inch diagonally measured active display area with (1024 horizontal by 600 vertical pixel) resolution. The interface it uses is MIPI, and the touch screen type it comes with is CTP, which is suitable for applications in smart home scenarios.
- Product Details
| Part Number |
70P3078W-06KC-V0 |
| Size(inch) | 7.0 |
| Display mode | IPS |
| Resolution | 1024*600 |
| Interface | MIPI |
|
Expandable interface |
MIPI/RGB |
| Luminance (cd/m²) | 200 |
| Active Area (mm) |
154.21*85.92 |
| Outline Dimension (mm) |
164.50*99.60*4.52 |
| Touch screen | CTP |
| Touch screen Structure | G+G |
| Touch screen IC model | ILI2511 |
|
Touch screen interface |
USB |
|
Operating Temp |
-10~+50℃ |
|
Storage Temp |
-20~+60℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
