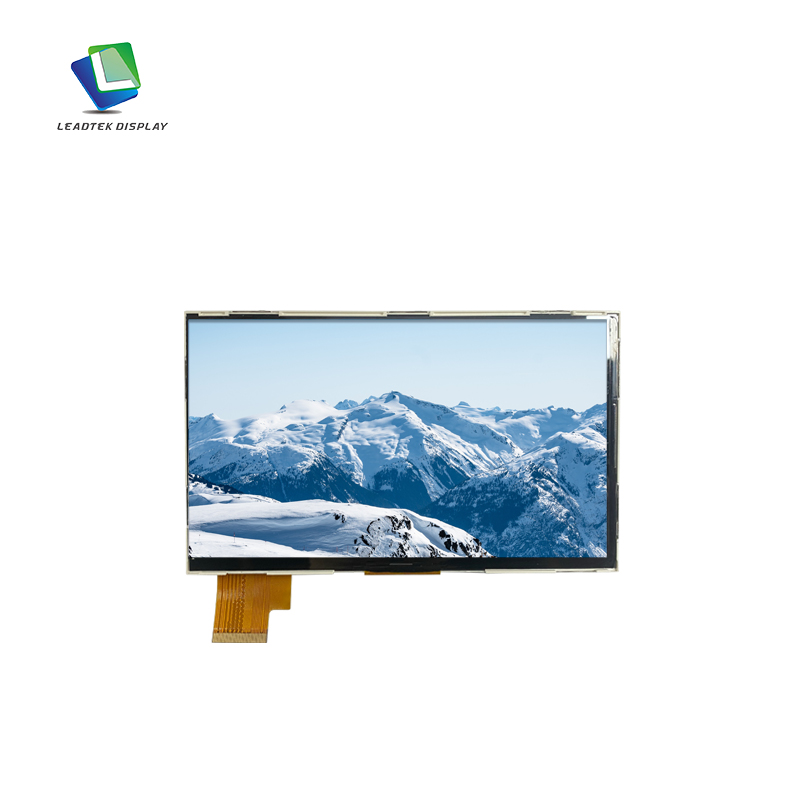

7 inch Transmissive Display IPS View Angle with 1024*600 Resolution MIPI Interface Panel Module

LTK070WSBLM35-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 7 (16:9) inch diagonally measured active display area with (1024 horizontal by600vertical pixel) resolution.(D)

Inquire Now
BackPrevious Next
  • Product Details

Specification of 7 inch Transmissive Display IPS View Angle with 1024*600 Resolution MIPI Interface Panel Module

1 P/N LTK070WSBLM35-V0
2 Type of LCD panel 7" TFT LCM
3 View angle IPS
4 View Shape landscape
5 Interface MIPI
6 Resolution 1024*600
7 Brightness of LCD panel 450
8 LCM Dimension(mm) 165.00(H)*100.10(V)*3.45(D)
9 Active Area(mm) 154.21(H)*85.92(V)
10 Operating Temperature -20-+70℃
11 Storage Temperature -30-+80℃
12 CTP Without
13 The general tolerance is ±0.2mm
14 All materials in the figure are RoHS compliant.

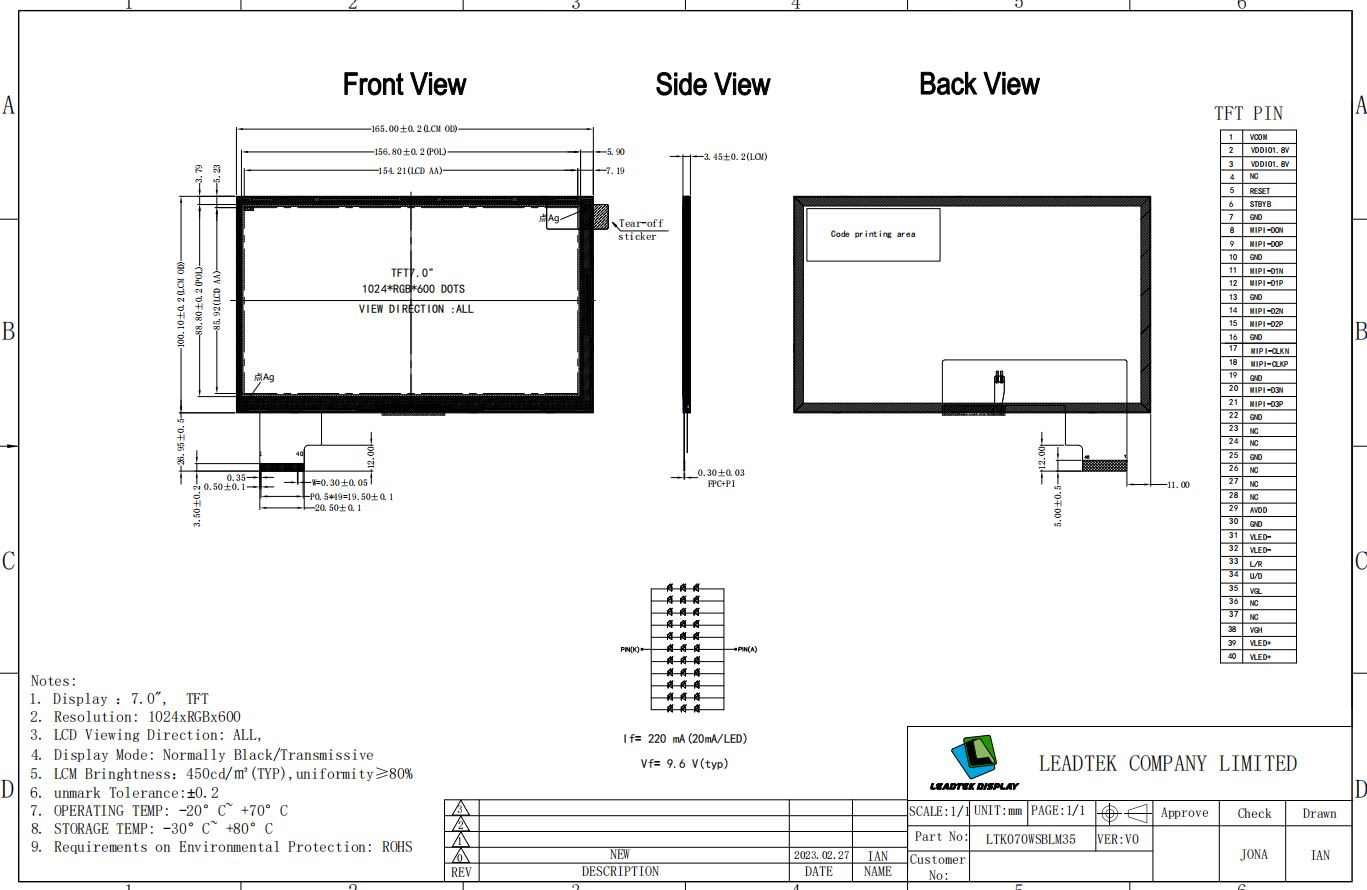

Drawing of 7 inch Transmissive Display IPS View Angle with 1024*600 Resolution MIPI Interface Panel Module
