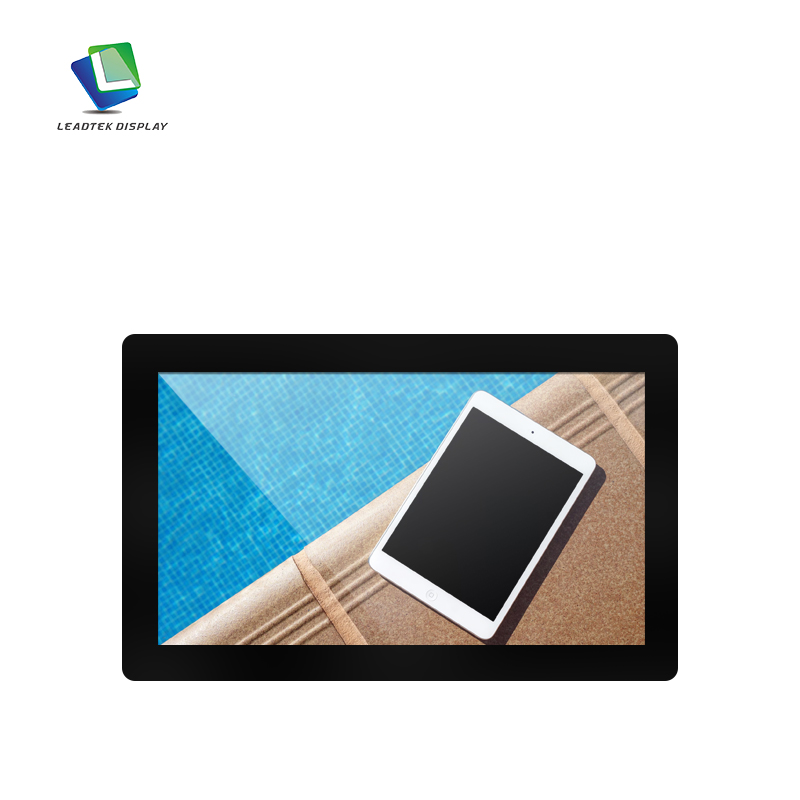

7.0 inch IPS 1024x600 TFT LCD display with CTP
LTK700WS12H-CTW-V6 is a 7.0-inch IPS display designed for smart home applications. With a high-resolution1024×600 screen and vibrant brightness of350 cd/m², this display offers stunning visuals and reliable performance. Its LVDS interface, expandable to RGB, ensures seamless integration with smart home systems.
Equipped with a robustG+G capacitive touch panelpowered by theFT5446 driver IC, it delivers precise and responsive touch interaction. Built to perform in diverse environments, the LTK700WS12H-CTW-V6 operates reliably in temperatures ranging from-20°C to +70°C.
Compact and sleek with dimensions of176.00×109.00×5.30mm, this display is the perfect solution for enhancing modern smart home experiences.
- Product Details
|
Part Number. |
LTK700WS12H-CTW-V6 |
| Size(inch) | 7.0 |
|
Display Mode |
IPS |
|
Resolution |
1024*600 |
|
Interface |
LVDS |
|
Expandable interface |
RGB |
|
Luminance (cd/m²) |
350 |
|
Active Area(mm) |
154.21*85.92 |
|
LCM+CTP Outline Dimension(mm) |
176.00*109.00*5.30 |
| Touch Screen | CTP |
| CTP Type | G+G |
| CTP Driver IC |
FT5446 DQS-Q03 |
| CTP Interface | IIC |
|
Operating Temp |
-20~+70℃ |
|
Storage Temp |
-30~+80℃ |
| Application | Smart Home |
