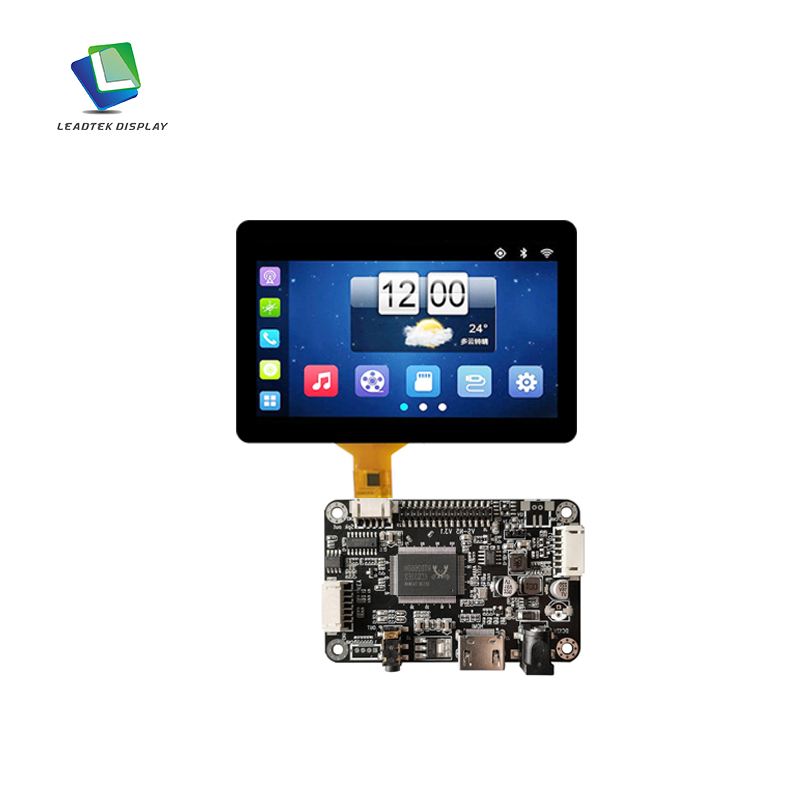

7.0 inch Customized 800*480 TFT Display Module with Touch and HDMI Board
LEADTEK Display modelLTK070WV50CYW-02KC-HT-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 7.0 (16:9) inch diagonally measured active display area with (800horizontal by480 vertical pixel) resolution.
Features
- 7 (16:9 diagonal) inch configuration
- Compatible with NTSC & PAL system
- Image Reversion: UP/DOWN and LEFT/RIGHT
- ROHS design
- Product Details
Product Parameters:
| Model number | LTK070WV50CYW-02KC-HT-V0 |
| Resolution |
800*480 |
| Viewing Direction | IPS |
| LCM OD(mm) |
164.90*100.00*3.50 |
| LCM AA(mm) |
154.21*85.92 |
|
TPM V.A (mm) |
154.68*86.52 |
|
TPM O.D (mm) |
176.40*111.00*5.60 |
| PCB Outline |
90.0*62.0*15.0 |
|
Signal Input |
RGB |
| Signal Output | HDMI |
| LCM Brightness | 500 |
| TPM Brightness | 450 |
|
Operating Temperature |
-10~+60℃ |
| Storage Temperature |
-20~+70℃ |
Product Drawing
