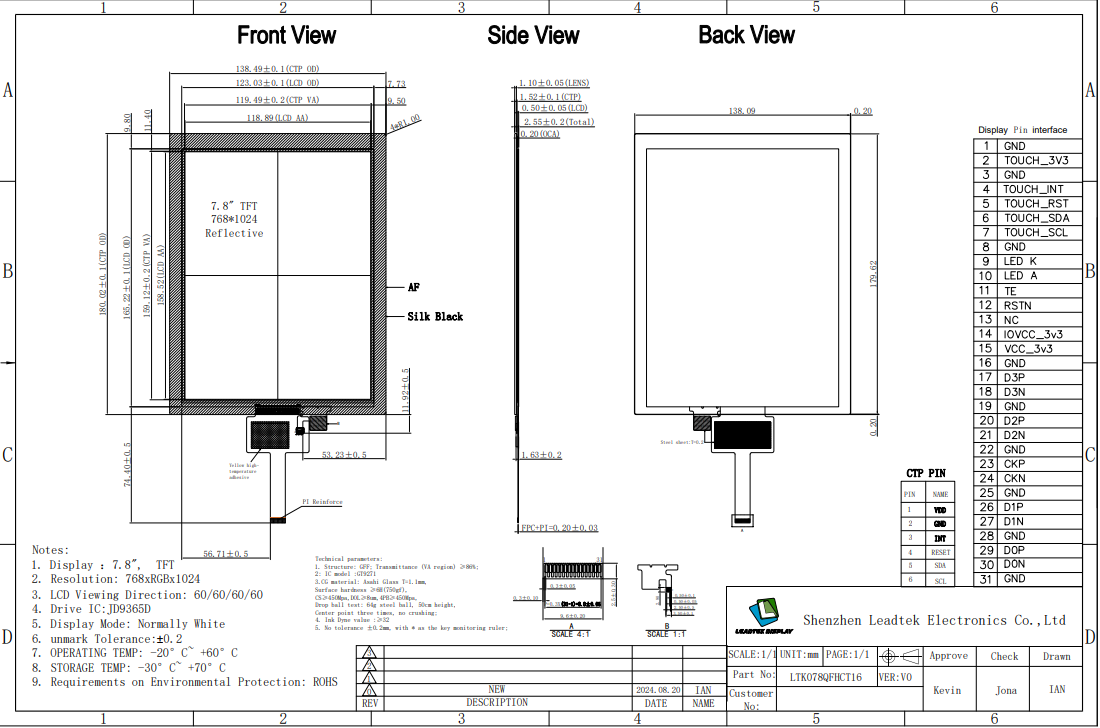

7.8'' 768*1024 Reflective Display with MIPI Interface
Leadtek Display's model number is LTK078QFHCT16-V0, an environmentally friendly display with a resolution of 768*1024, a reflective display, 16.7M full color, and a reflectivity of 18.88%. Its LCD Viewing Direction is 60/60/60/60, the operating temperature is -20~+60℃, and the storage temperature is -30~+70℃. The TFT LCD has an effective display area of 7.8 inches on the diagonal, a power consumption of 358/mW, and is equipped with a MIPI interface, making it very suitable for intelligent transportation applications.
- Product Details
|
Part Number |
LTK078QFHCT16-V0 |
|
Display Mode |
Reflective |
|
Resolution |
768*1024 |
| Color |
16.7M, full color |
|
Reflectivity |
18.88% |
|
Reflection Contrast |
15:1 |
|
Power consumption |
358/mW |
|
Active Area (mm) |
118.89*158.52 |
|
Outline Dimension (mm) |
138.49*180.02*2.55 |
| Interface | MIPI |
|
Touch Screen |
CTP |
|
Luminance |
NA |
|
Operating Temperature |
-20~+60℃ |
|
Storage Temperature |
-30~+70℃ |
