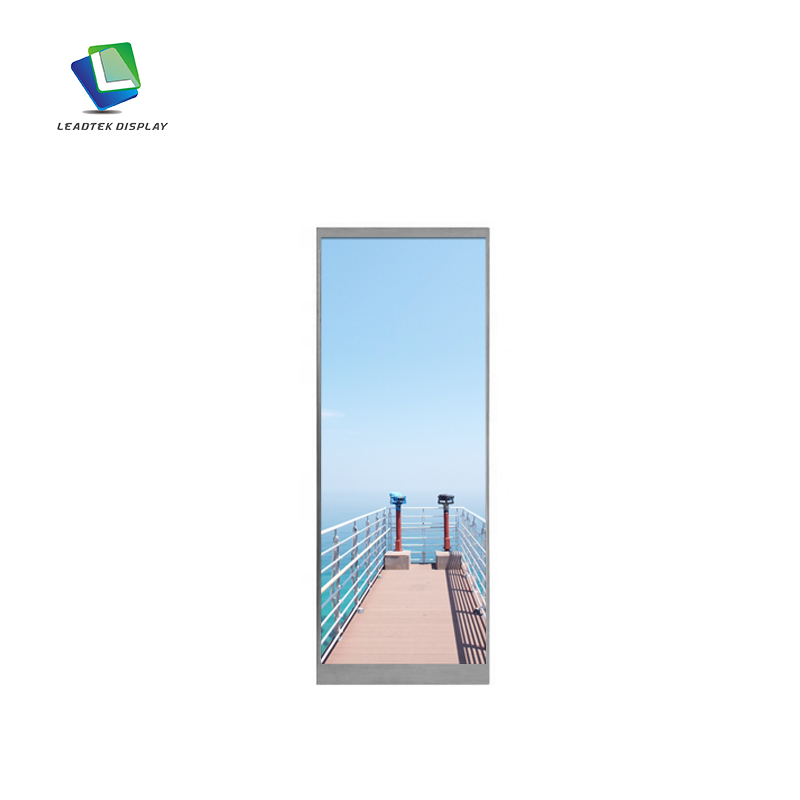

7.84" IPS 400x1280 Resolution

This 7.84" IPS display offers a 400x1280 resolution with MIPI interface, providing clear and vibrant visuals. With a brightness of 500 cd/m², it ensures good visibility in various lighting conditions. The display area is 59.40(W) x 190.08(H) mm, and its overall dimensions are 71.40(W) x 216.68(H) x 7.39(T) mm. It operates between -20°C and +70°C, with a storage range of -30°C to +80°C. Ideal for handheld devices and compact applications.
  • Product Details

PRODUCT PARAMETER


Size (inch) 7.84
Part Number. LTK078WXBLM02-V0(20240312)
Display Mode IPS
Resolution 400*1280
Interface MIPI
Luminance (cd/m²) 500
Active Area (mm) 59.40*190.08
Outline Dimension (mm) 71.40*216.68*7.39
Touch Screen NA
Operating Temp -20°C~+70°C
Storage Temp -30°C~+80°C

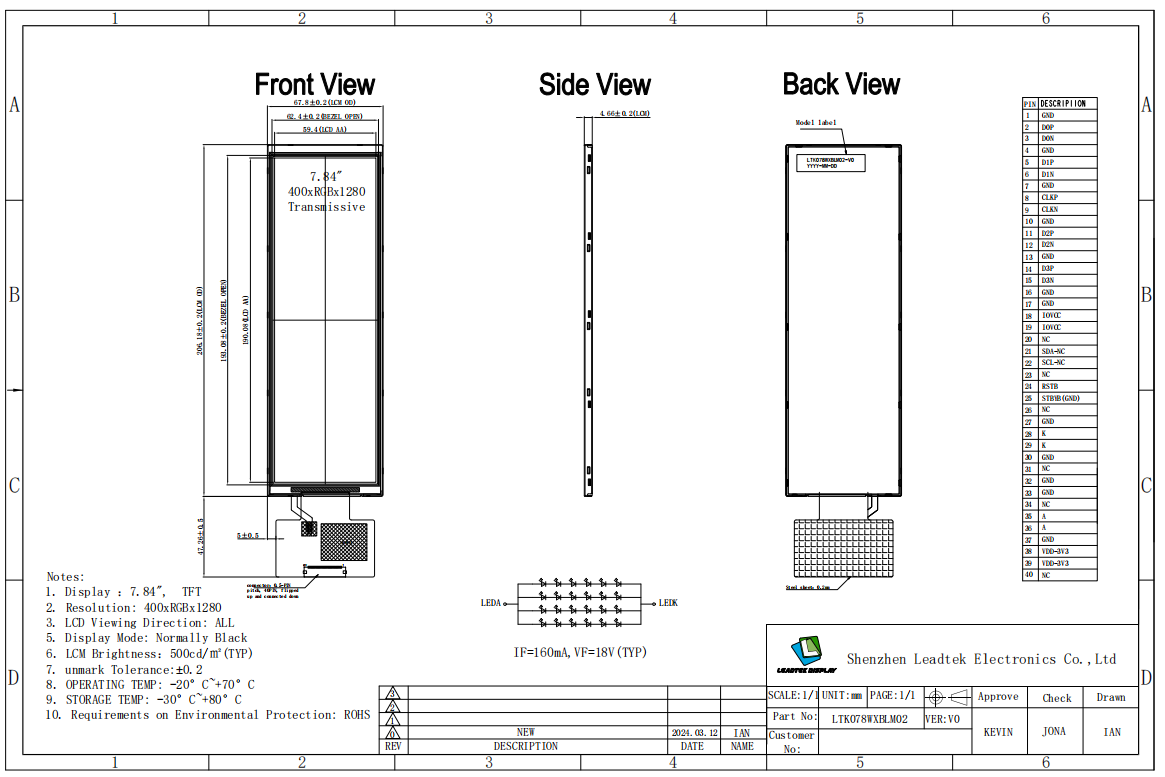

PRODUCT DRAWING
