8.8 inch 1280*480 Resolution high brightness TFT LCD display Module use for Gambling machines
LTK088MNHLM03-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a Gambling device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 8.8 inch diagonally measured active display area with (1280 horizontal by 480 vertical pixel) resolution. (E)
- Product Details
8.8 inch 1280*480 Resolution high brightness TFT LCD Display module use for Gambling machines
Product Parameters:
Model number | LTK088MNHLM03-V0 |
Resolution | 1280*480 |
Viewing Direction | IPS |
RTP Outline dimension(mm) |
/ |
LCD AA(mm) |
209.28*78.48 |
Outline dimension(mm) |
229.00*96.60*4.50 |
RTP VA(mm) |
/ |
Driver IC |
FL5895 |
Interface | LVDS |
Touch IC | / |
Touch Structure | / |
Brightness | 1100 nits |
Operating Temperature |
-20~70 degree |
Storage Temperature | -20~70 degree |

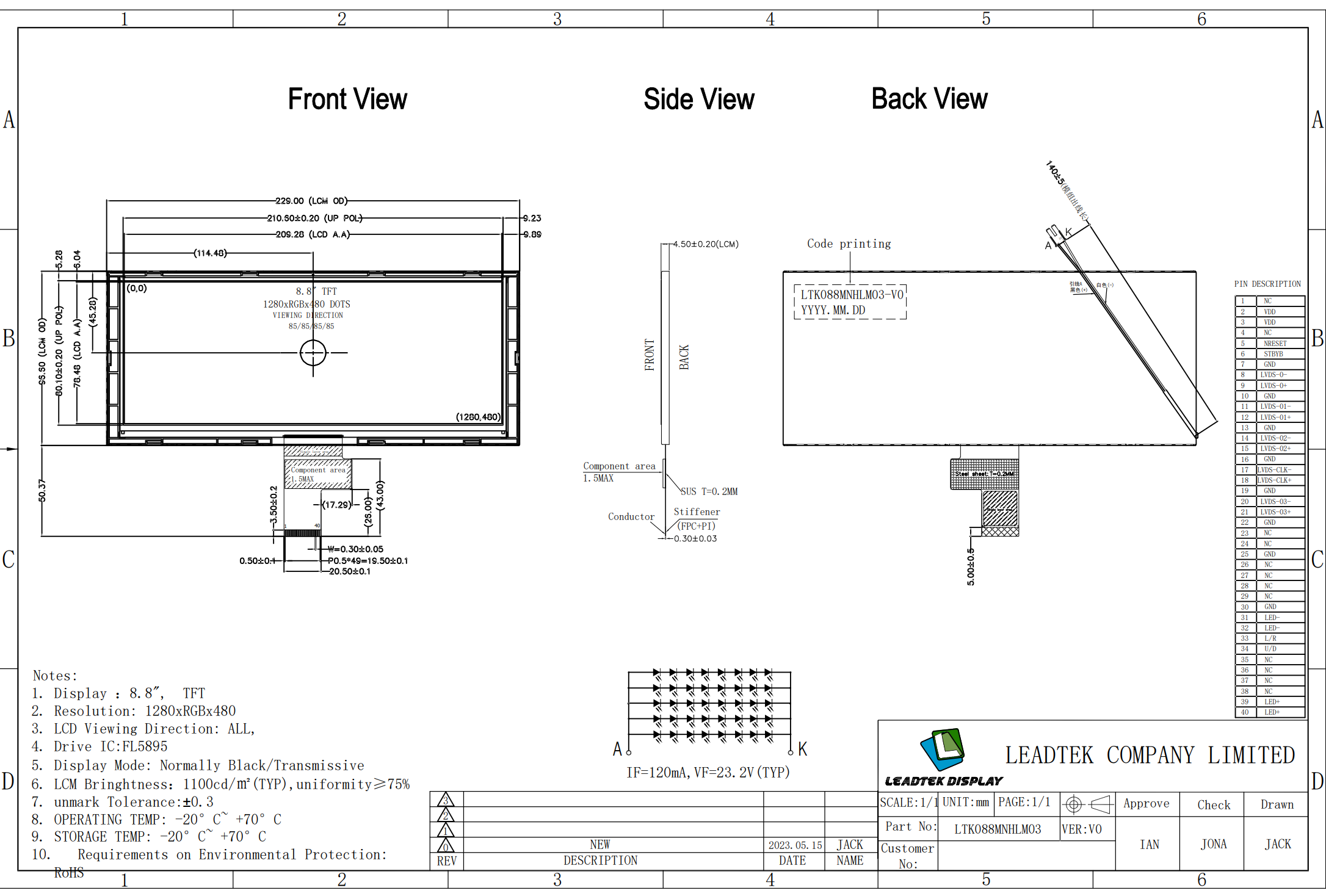

Product Drawing
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
