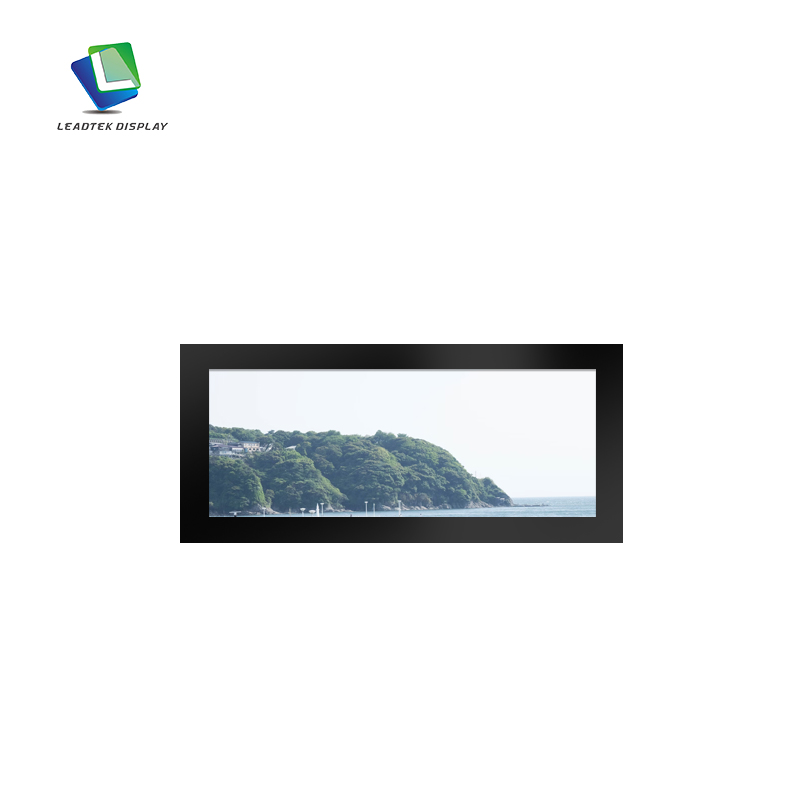

8.8'' 1280*480 Resolution high brightness TFT LCD Touch Display
LTK088MNHCT03-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a Gambling device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 8.8 inch diagonally measured active display area with (1280 horizontal by 480 vertical pixel) resolution. (L)It has a high brightness of 1000 and has CTP touch Screen.
- Product Details
| Part Number. | LTK088MNHCT03-V0 |
| Size(inch) | 8.8 |
| Resolution | 1280*480 |
| Display Mode | IPS |
|
Interface |
LVDS |
|
Luminance (cd/m²) |
1000 |

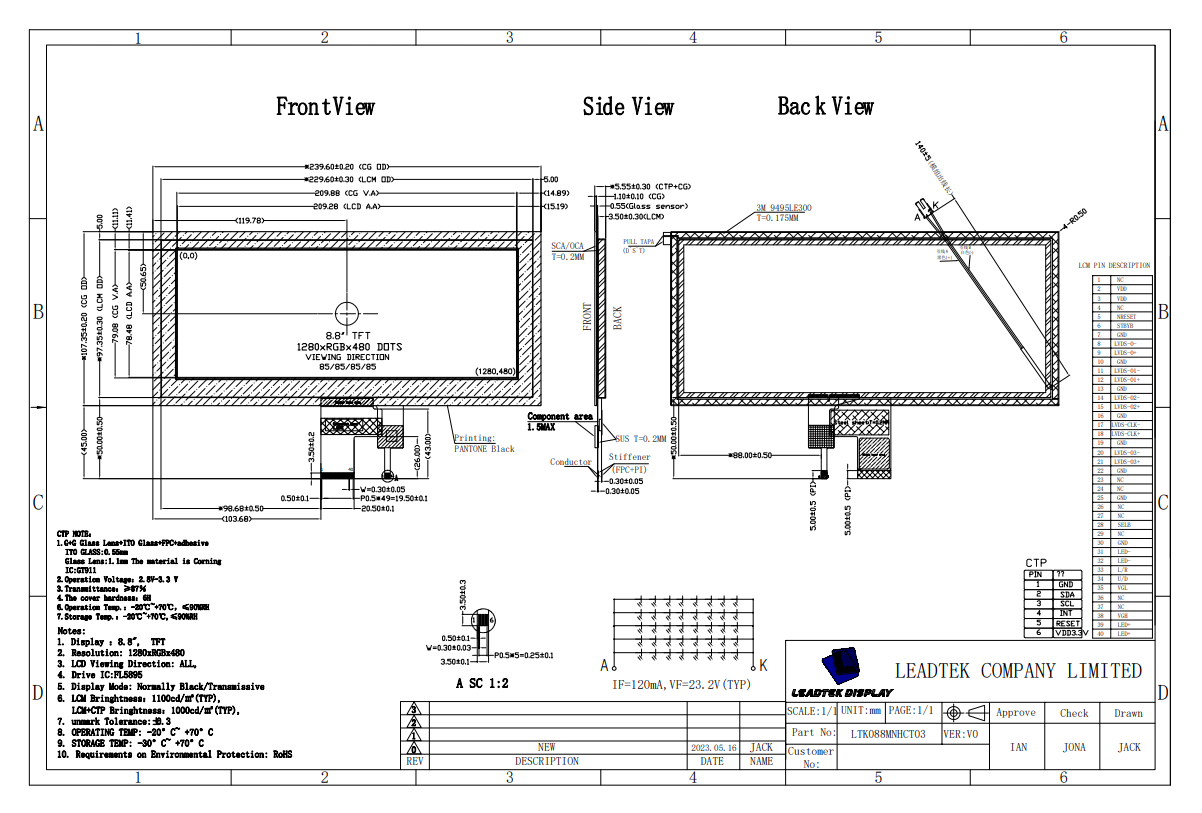

| Outline dimension(mm) |
239.60*107.35*5.55 |
| LCD AA(mm) |
209.28*78.48 |
|
Driver IC |
FL5895 |
| Touch Screen | CTP |
| CTP Driver IC | GT911 |
| CTP Type | G+G |
|
CTP Interface |
IIC |
|
Operating Temp |
-20~+70℃ |
| Storage Temp | -30~+70℃ |
