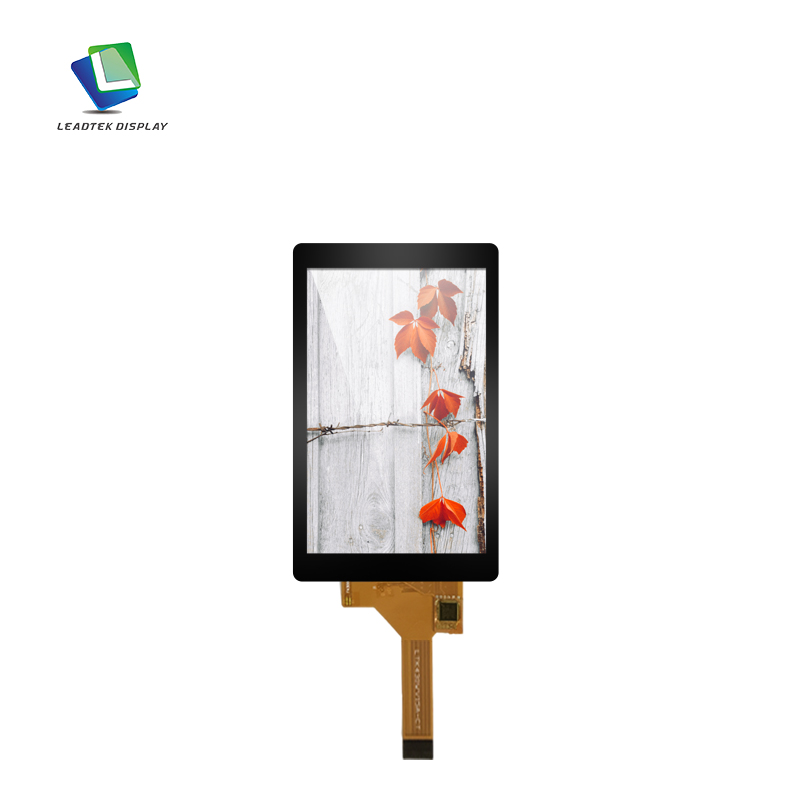

Custom tft lcd 5 inch touch screen, 720*1280 ips panel
LTK050H3146W-08QC-V3 is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display
(LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module,
a driver circuit, and a back-light unit.The resolution of a 5” contains 720*1280dots.
- Product Details
|
Model Number |
LTK050H3146W-08QC-V3 |
|
Size（inch) |
5'' |
|
Display model |
IPS |
|
Resolution |
720(H)*1280 (V) |
|
Interface |
MIPI |
|
LCD OD (mm) |
76(H)*140.8(V)*3.35(D)
|
|
Active area (mm) |
62.1(H)*110.4 (V) |
|
Brightness |
260 |
|
Touch screen |
CTP |
|
Touch screen structure |
CG |
|
Touch screen IC model |
GT911 |
|
Touch screenInterface |
IIC |
|
Operating Temp |
-10~+60℃ |
|
Storage Temp |
-20~+70℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
