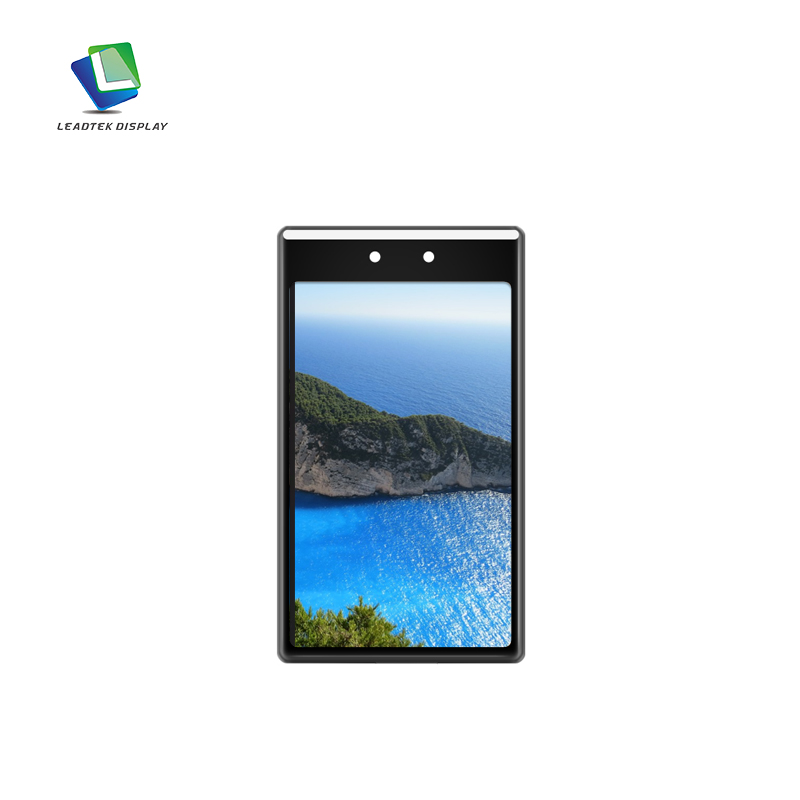

Customized Touch Panel 8 inch Portrait mode 800*1280 resolution TFT LCD display 8 inch TFT LCD display module
LTK080P3138BL-Q-V3 is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit. This TFT LCD has a 8 inch diagonally measured active display area with (800 horizontal by 1280 vertical pixel) resolution. (T)
- Product Details
Specification of 8 inch Portrait mode 800*1280 resolution TFT LCD display
|
PN# |
LTK080P3138BL-Q-V3 |
|
Display type |
8 inch TFT LCD Module |
|
Display mode |
IPS |
|
Resolution |
800*1280 |
|
Brightness |
350nits |
|
Interface |
MIPI |
|
LCD Acitve Area |
107.64*172.22 mm |
|
LCD Outline Dimension |
117.7*207.0*5.4 mm |
|
Operation temperature |
-20~+60 |
|
Storage temperature |
-30~+70 |

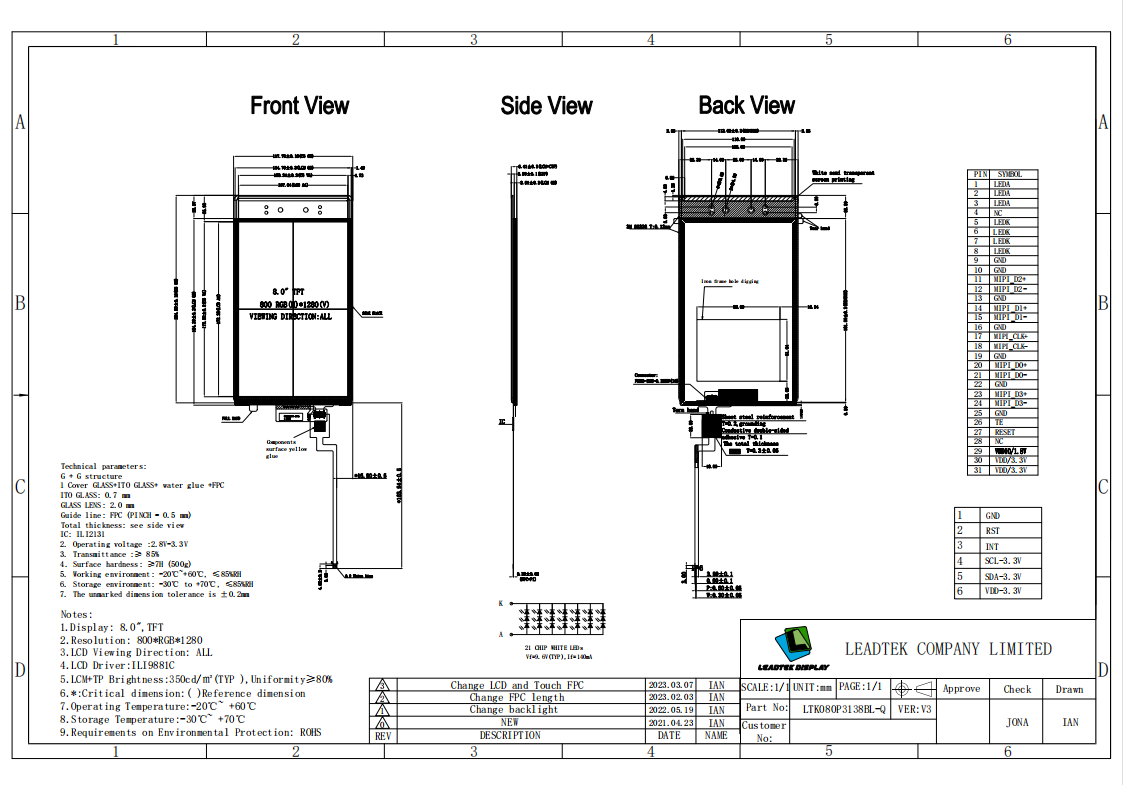

Drawing of 8 inch Portrait mode 800*1280 resolution TFT LCD display
