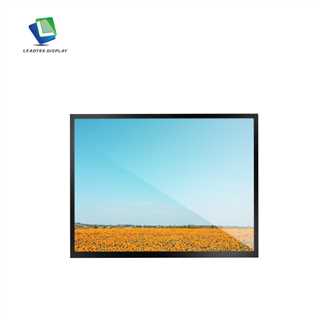

19 inch 1280*1024 IPS LVDS TFT Touch LCD Screen With HDMI Board
The LTK190L3027T-HT01-V1 is a 19.0-inch IPS display with 1280x1024 resolution,LVDS & HDMI inputs, and capacitive touch (CTP), ideal for industrial applications.
With 300 cd/m² brightness,wide viewing angles, and rugged design, it operates in 0°C to 50°Cenvironments. Powered by12V/3A, it ensures stable performance for automation, control systems, and monitoring.
- Product Details
| Size (inch) | 19.0 |
| Part Number. |
LTK190L3027T-HT01-V1 |
| Display Mode | IPS |
| Resolution |
1280*1024 |
| Signal Input | LVDS |
|
Signal Output |
HDMI |
| LCM Luminance (cd/m²) | 350 |
|
TPM Luminance (cd/m²) |
300 |
| LCM AA (mm) |
374.78*299.83 |
| LCM OD (mm) |
395.60*323.80*12.3 |
|
TPM VA (mm) |
377.32*302.06 |
|
TPM OD (mm) |
419.48*344.22*16.90 |
| Touch Screen | CTP |
|
Power |
12V/3A |
| PCB OD(mm) |
90.0*62.0*15.0 |
| Operating Temp |
-0~+50℃ |
| Storage Temp |
-20~+60℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
