High-Brightness 21.5" IPS LCD Module for Transportation Applications
This LTK215FHBLM13-V0 IPS LCD module features a resolution of 1920*1080 pixels and operates via LVDS interface with a luminance of 750.0 cd/m². It is designed to function reliably in temperatures ranging from -0℃ to +50℃, with storage conditions from -10℃ to +60℃. Ideal for smart transportation applications, it provides clear, high-quality visuals and dependable performance in various environmental conditions.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 21.5 |
| Part Number. | LTK215FHBLM13-V0 |
| Display Mode | IPS |
| Resolution |
1920*1080 |
| Interface | LVDS |
| Luminance (cd/m²) | 750 |
| Active Area (mm) | 478.66*260.28 |
| Outline Dimension (mm) |
495.64*292.21*9.90 |
| Touch Screen | NA |
| Operating Temp | -0~+50℃ |
| Storage Temp | -10~+60℃ |

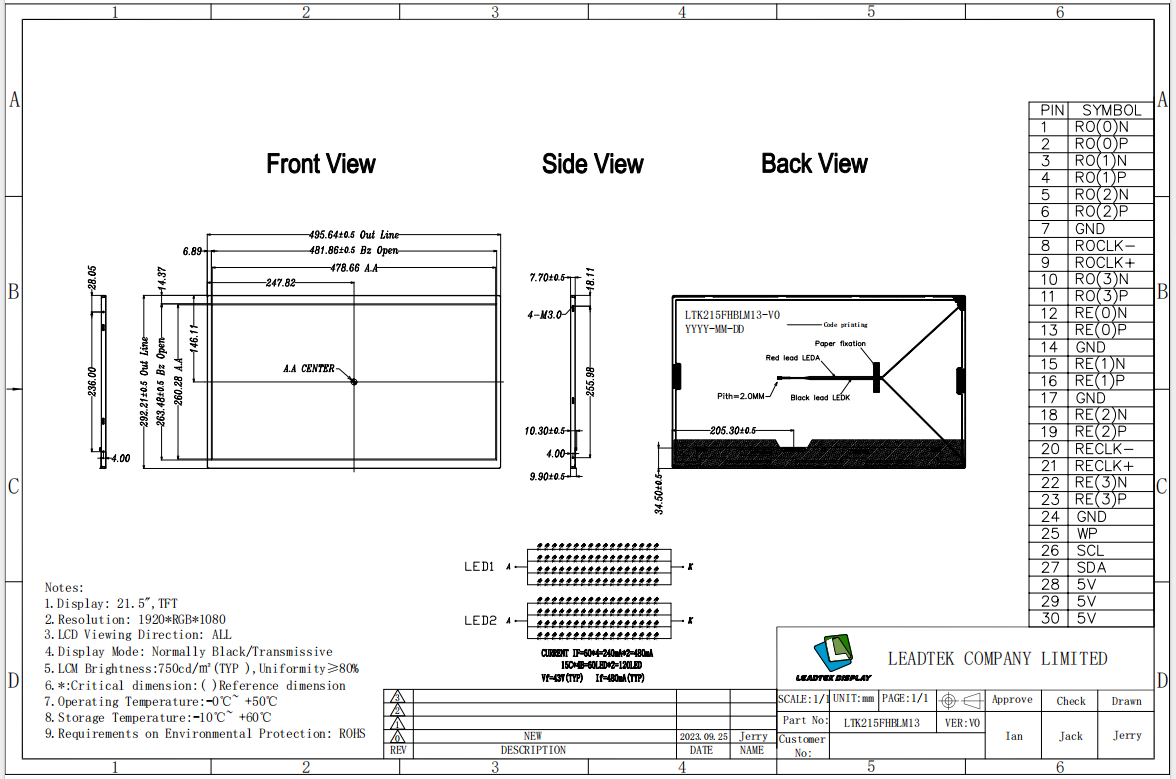

PRODUCT DRAWING
