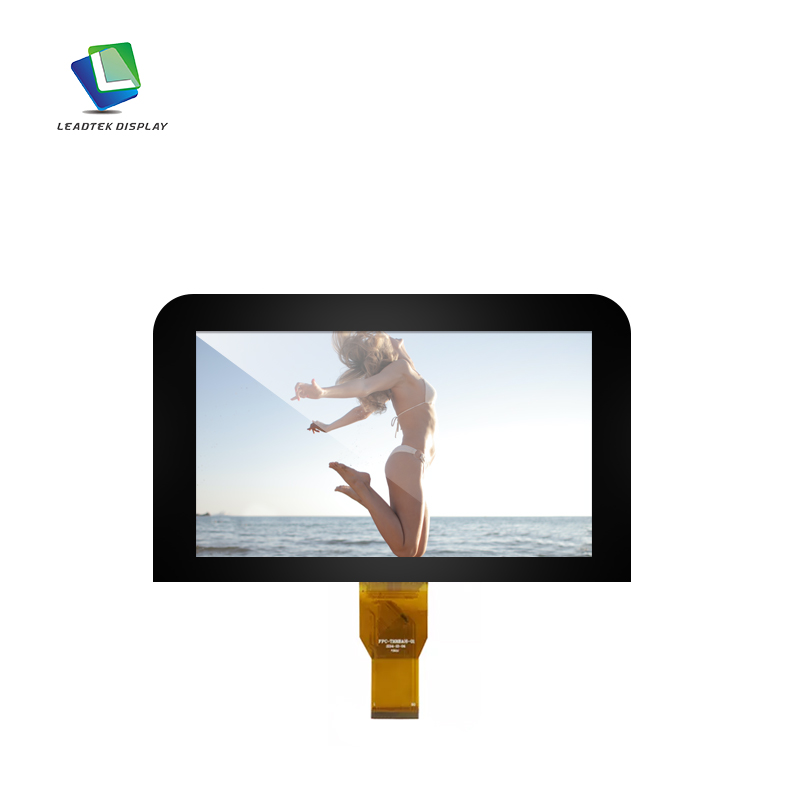

Landscape TFT LCD 10.1 inch LCM with CTP 1024*600 resolution RGB Interface 200nits TN display
LTK101H5029W-08KC-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 10.1 inch diagonally measured active display area with (1024 horizontal by 600 vertical pixel) resolution. (D)
- Product Details
| Model Number: | LTK101H5029W-08KC-V0 |
| Size: | 10.1" LCM+CTP |
| Cell type： | HSD/TN |
| Interface： | RGB |
| Resolution: | 1024*600 |

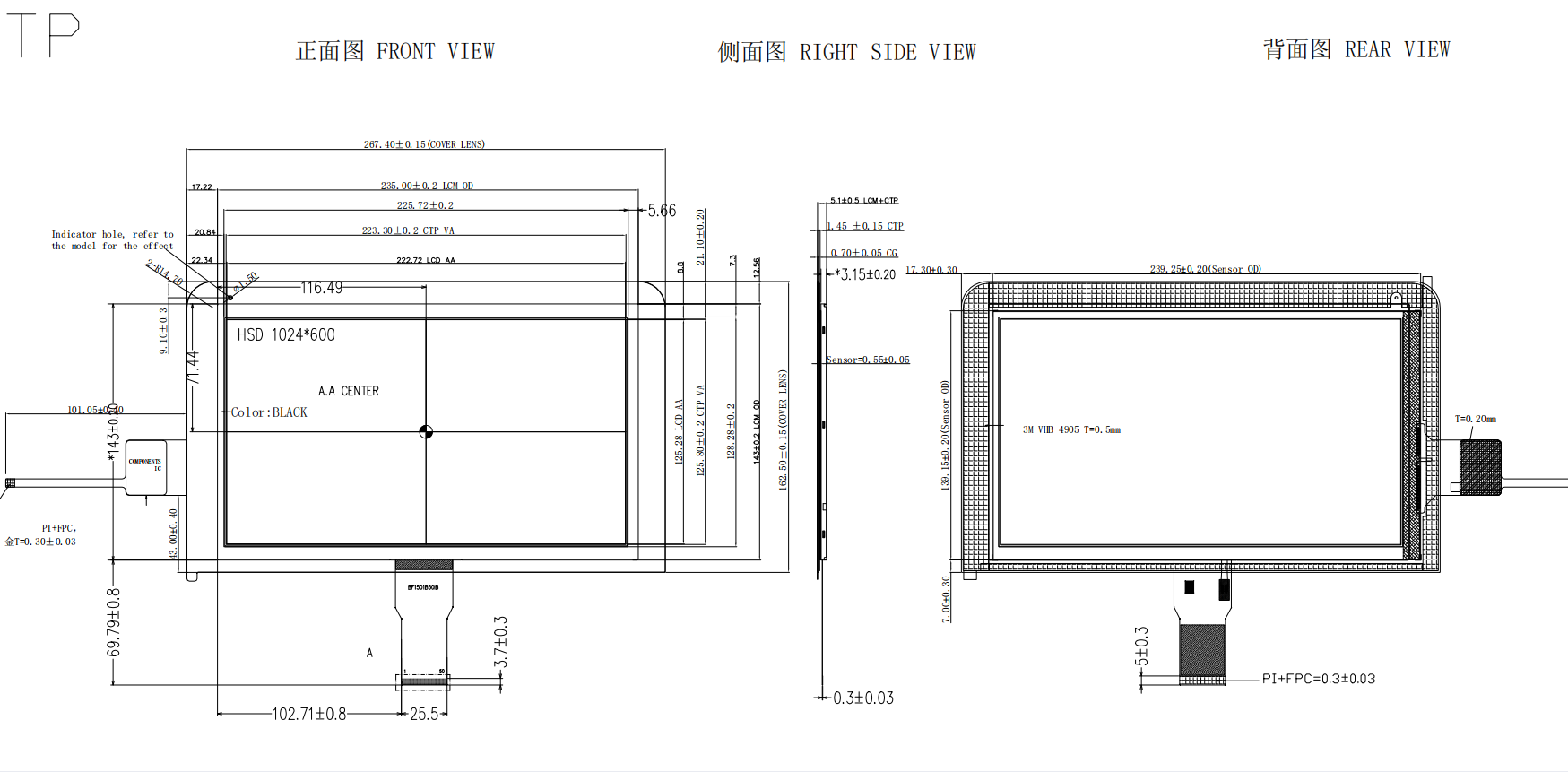

| Module outline dimension(mm)： | 267.4*162.5*5.10 |
| LCM Outline Dimensio（mm) | 235*143*3.15 |
| LCD Active area(mm)： | 222.72*125.28 |
| LCM Luminance: | 200 |
| CTP Driver IC | GT9271 |
| Structure | G+G |
| CTP Interface | IIC 6PIN |
| LENS VA | 223.3*125.80 |
| LENS OD | 267.4*162.5 |
