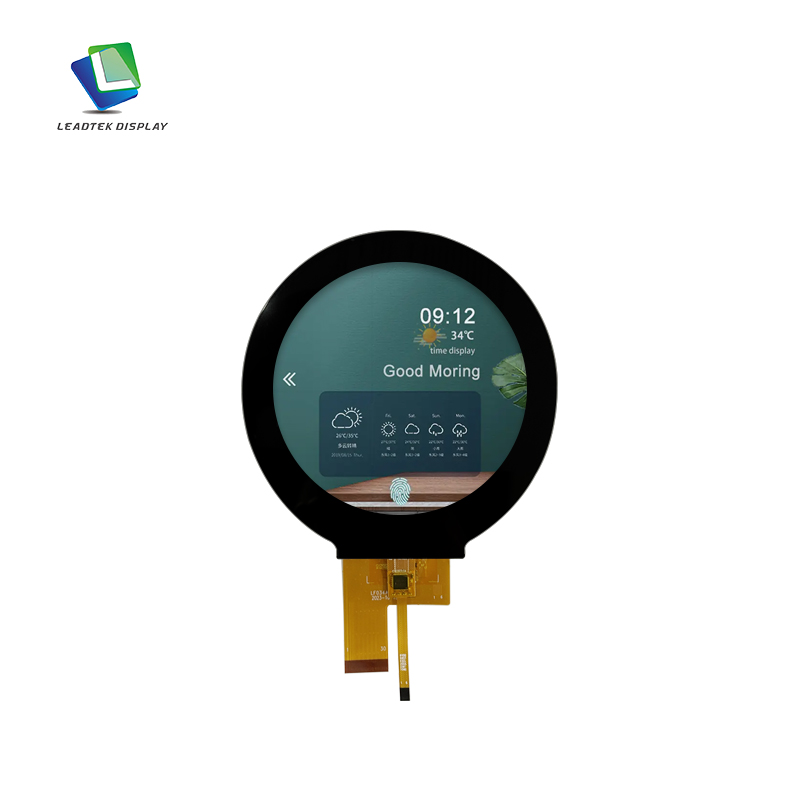

LCD 3.4 inch Circle Display IPS Panel Mipi interface Touch Screen for Smart Home
LTK034MNBCT12-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a Home control system device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 3.4 inch diagonally measured active display area with (800 horizontal by 800 vertical pixel) resolution.
- Product Details
| Model number | LTK034MNBCT12-V0 |
| Viewing Direction | IPS |
|
Resolution |
800*800 |

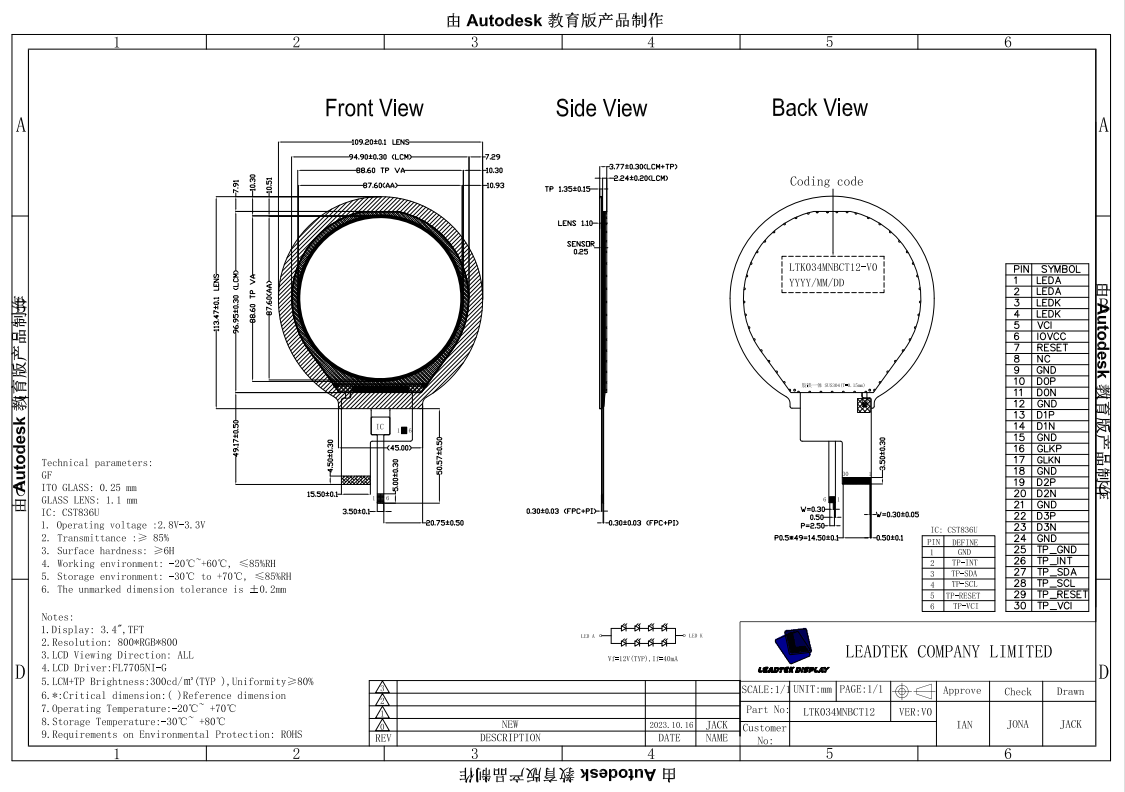

| Outline dimension(mm) |
109.20*113.47*3.77 |
| LCD AA(mm) |
88.60*88.60 |
| Interface | MIPI |
|
Expandable interface |
SPI+RGB |
| Brightness | 300nits |
|
Touch screen type |
CTP |
|
Touch screen structure |
GF |
|
Touch screen IC model |
cst836u |
|
Touch screen Interface |
IIC |
|
Operating Temperature |
-20~+70℃ |
| Storage Temperature | -30~+80℃ |
