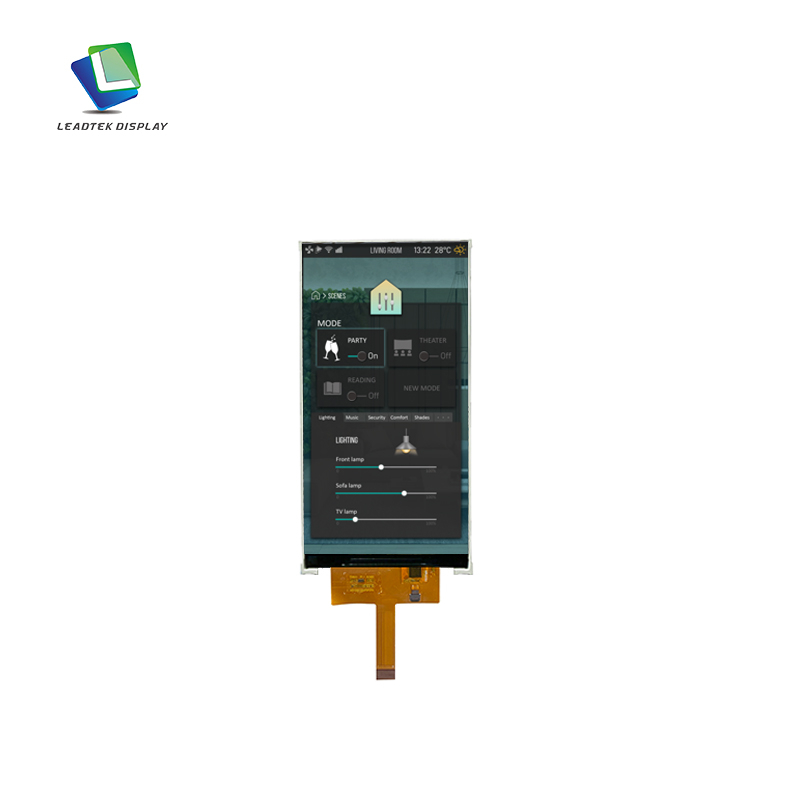

6.9 inch 720*1440 LCD display module MIPI interface use for smart home applications
LTK069MNBLM12-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a Smart Home Control System. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 6.9 inch diagonally measured active display area with (720 horizontal by 1440 vertical pixel) resolution. (E)
- Product Details
LCD display module
Product Parameters:
| Model number | LTK069MNBLM12-V0 |
| Resolution | 720*1440 |
| Viewing Direction | IPS |
| CTP Outline dimension(mm) | / |
| LCD AA(mm) |
78.02*156.04 |
|
LCD Outline dimension(mm) |
56.34*163.34*2.35 |
|
CTP VA(mm) |
/ |
|
Driver IC |
GC9702C |
| Interface | MIPI |
| Touch IC | / |
| Touch Structure | / |
| Brightness | 320 nits |
|
Operating Temperature |
-20~70 degree |
| Storage Temperature | -30~80 degree |

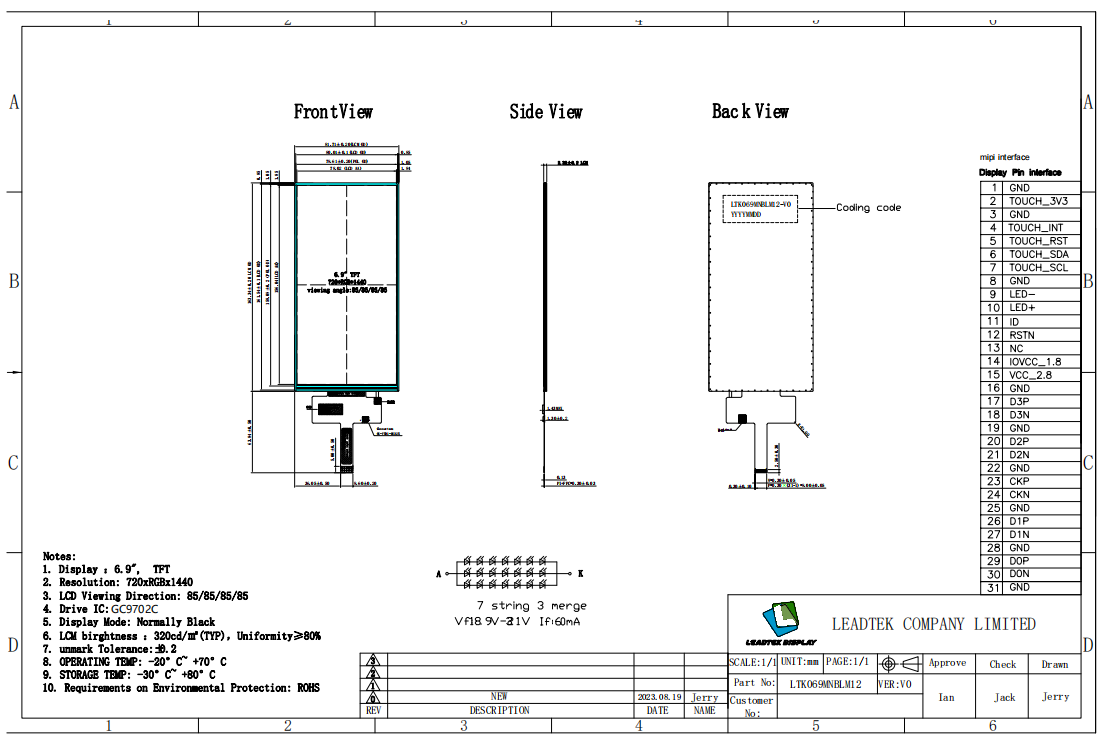

Product Drawing
