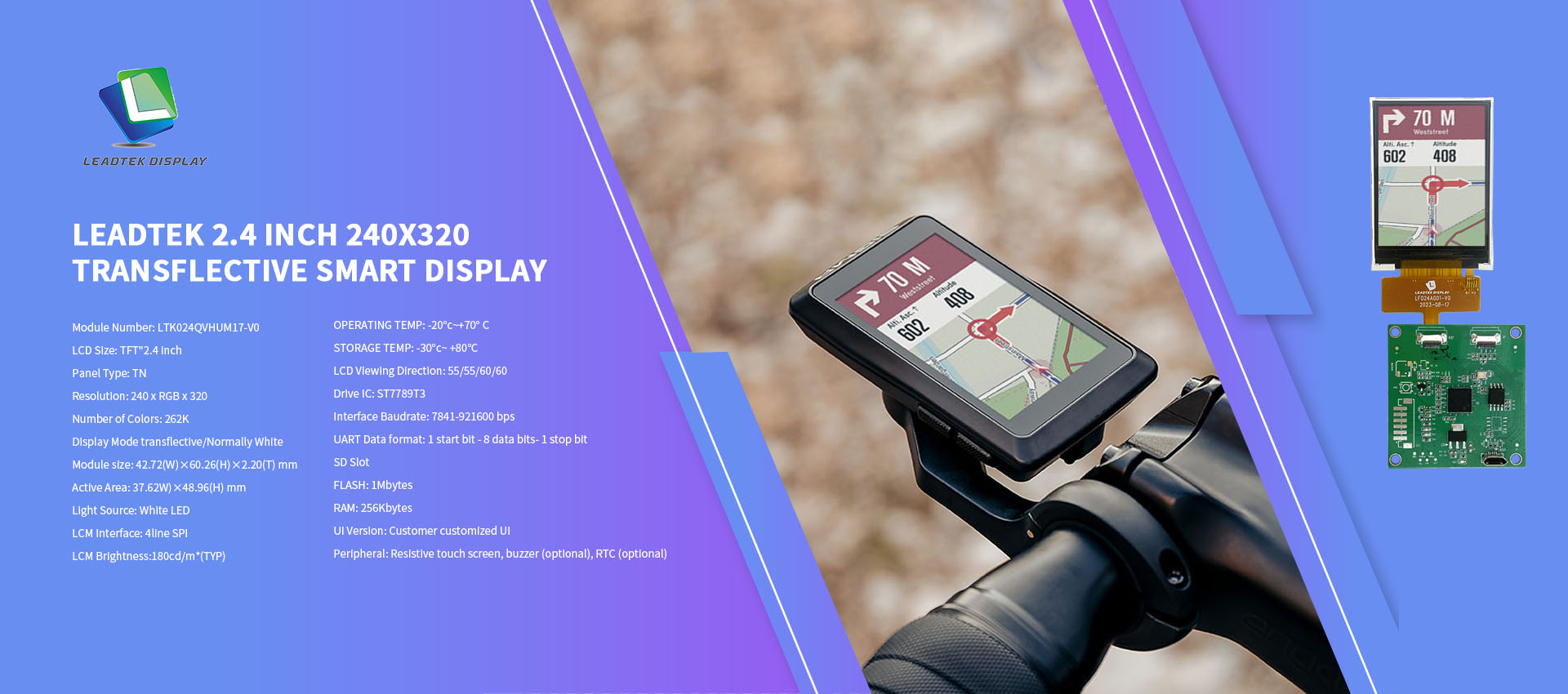

Leadtek 2.4 inch 240x320 Transflective Smart Display

Hi everyone, this is Leadtek Display. Today we’re going to introduce a smart display. Here is one of a Leadtek smart display sample. This is a transflective 2.4inch TFT LCD with 240*320 resolution. Featuring user-selectable baud rates of 7841, 115200, and 921600 bps, it supports 3.3V TTL and RS232 modes. With 1MB FLASH memory and 256KB RAM, it stores fonts, icons, and images up to 262KB. The customizable UI is enhanced by optional peripherals like an RTC, resistive touch screen, and buzzer.

This smart display can be used in various application, especially for smart transportation. The characteristics of transflective make it readable under sunlight and white back light balance its viewing during night time. 2.4 inch size very suitable in automatic vehicle such as car navigation, small control screens, temperature control panels, bicycle odometers, etc. We could also customize different feature smart display to satisfy diversify demand.

Features:

✅Module Number: LTK024QVHUM17-V2

✅LCD Size: TFT"2.4 inch

✅Panel Type: TN

✅Resolution: 240 x RGB x 320

✅Number of Colors: 262K

✅Display Mode: transflective/Normally White

✅Module size: 42.72(W)×60.26(H)×2.20(T) mm

✅Active Area: 37.62W)×48.96(H) mm

✅Light Source: White LED

✅LCM Interface: 4line SPI

✅LCM Brightness:180cd/m*(TYP)

✅OPERATING TEMP: -20°c~+70° C

✅STORAGE TEMP: -30°c~ +80°C

✅LCD Viewing Direction: 55/55/60/60

✅Drive IC: ST7789T3

✅InterfaceBaudrate: 7841-921600 bps

✅UART Data format: 1 start bit - 8 data bits- 1 stop bit

✅FLASH: 1Mbytes

✅RAM: 256Kbytes

✅UI Version: Customer customized UI

✅Peripheral: Resistive touch screen, buzzer (optional), RTC (optional)

If you are interested in our product or want to know more information about smart display, please continue following us and feel free to contact us.
