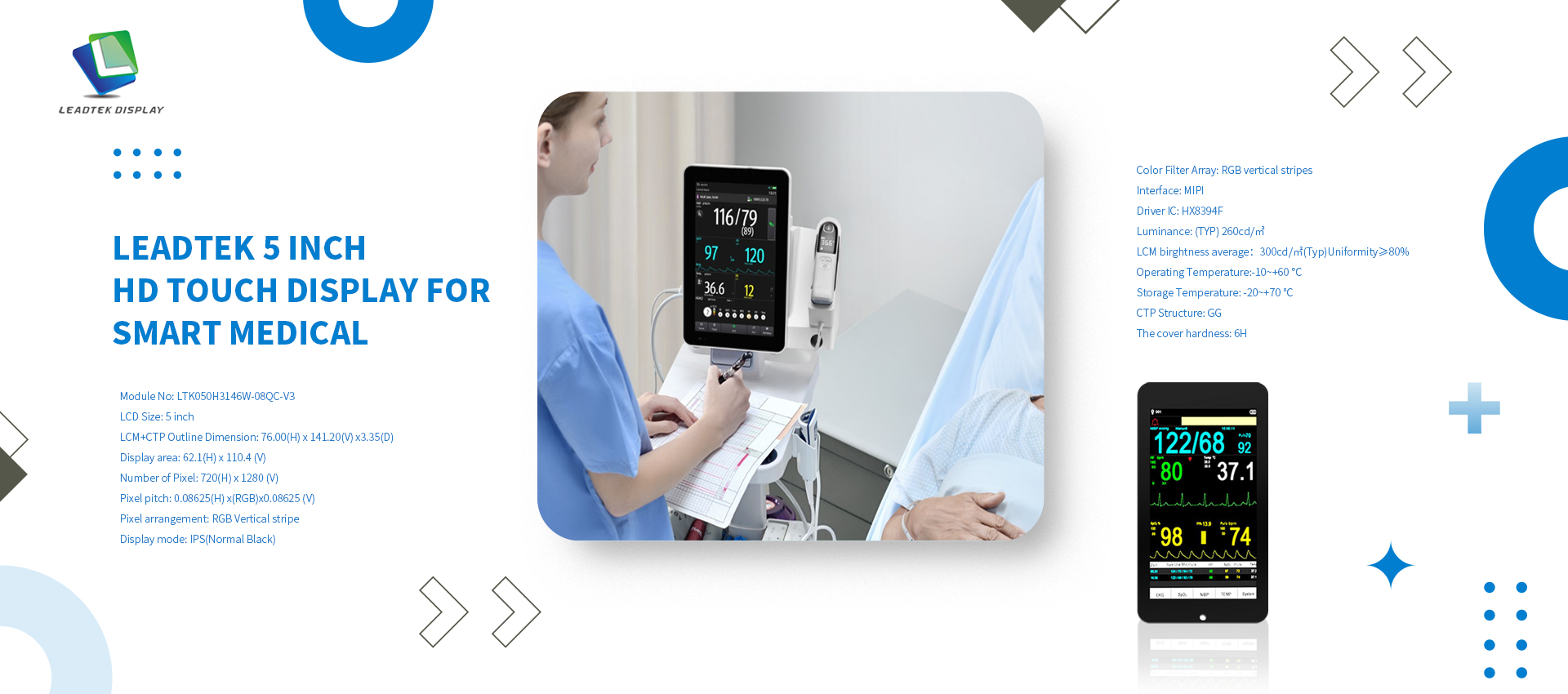

Leadtek 5 inch HD Touch Display for Smart Medical

This is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, driver circuit, backlight and PCAP.

This TFT LCD has a 5.0 inch diagonally measured active display area with 720 horizontal by 1280 vertical pixel resolution.

Features：

• Size: 5 inch configuration

• LCD Viewing Direction: ALL

• Image Reversion: UP/DOWN and LEFT/RIGHT

• Interface: MIPI

• CTP Structure: GG

• Operation voltage: 2.8V-3.3V

• LCD Driver: HX8394F without RAM, need to be adjusted by customer mainboard for landscape use.

• The cover hardness: 6H

Application：

Smart Medical

BASIC PARAMETERS：

• Module No: LTK050H3146W-08QC-V3

• LCD Size: 5 inch

• LCM+CTP Outline Dimension: 76.00(H) x 141.20(V) x3.35(D)

• Display area: 62.1(H) x 110.4 (V)

• Number of Pixel: 720(H) x 1280 (V)

• Pixel pitch: 0.08625(H) x(RGB)x0.08625 (V)

• Pixel arrangement: RGB Vertical stripe

• Display mode: IPS(Normal Black)

• Color Filter Array: RGB vertical stripes

• Interface: MIPI

• Driver IC: HX8394F

• Luminance: (TYP) 260cd/㎡

• LCM brightness average：300cd/㎡(Typ)Uniformity≥80%

• Operating Temperature:-10~+60 ℃

• Storage Temperature: -20~+70 ℃

• CTP Structure: GG

• The cover hardness: 6H
