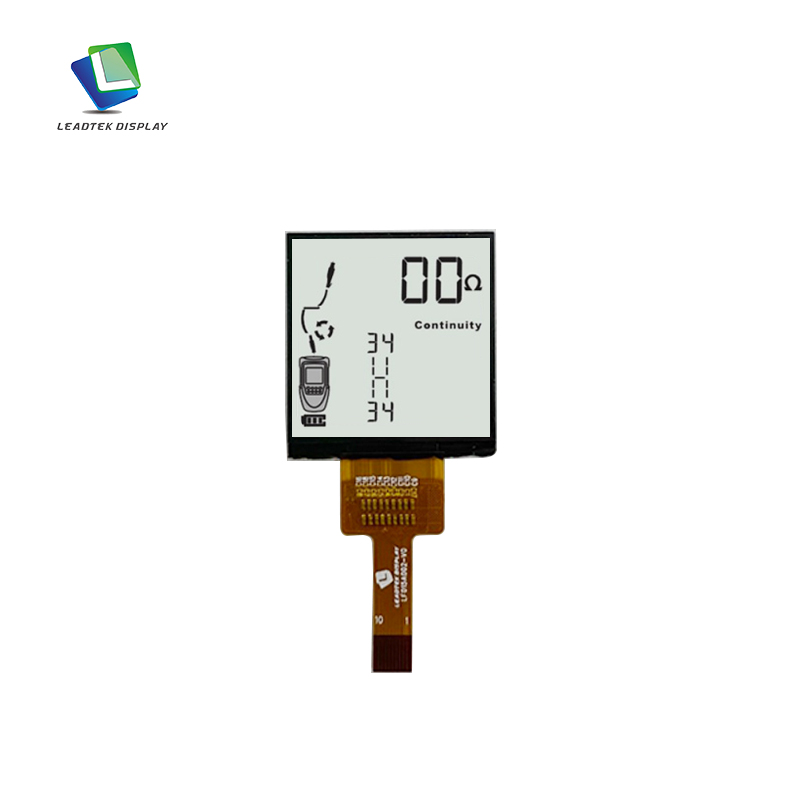

Leadtek display 1.54 inch Reflective TFT LCD Module use for handheld devices
- Product Details
Specification of 1.54 inch reflective LCD panel 200*200 lcd module, as below parameter:
LTK PN# |
LTK015MNHLM15-V0 |
Display type |
Reflective TFT LCD |
Display mode |
60/60/60/60 |
Resolution |
200*200 |
Interface |
4 Line SPI |
Active Area |
27.66*27.66 mm |
Module outline dimension |
29.46*31.71*0.72 mm |
LCD Driver IC |
ST7306 |
Operating Voltage |
3.3V |
Operating temperature |
-20~70 degree |
Storage temperature |
-30~80 degree |

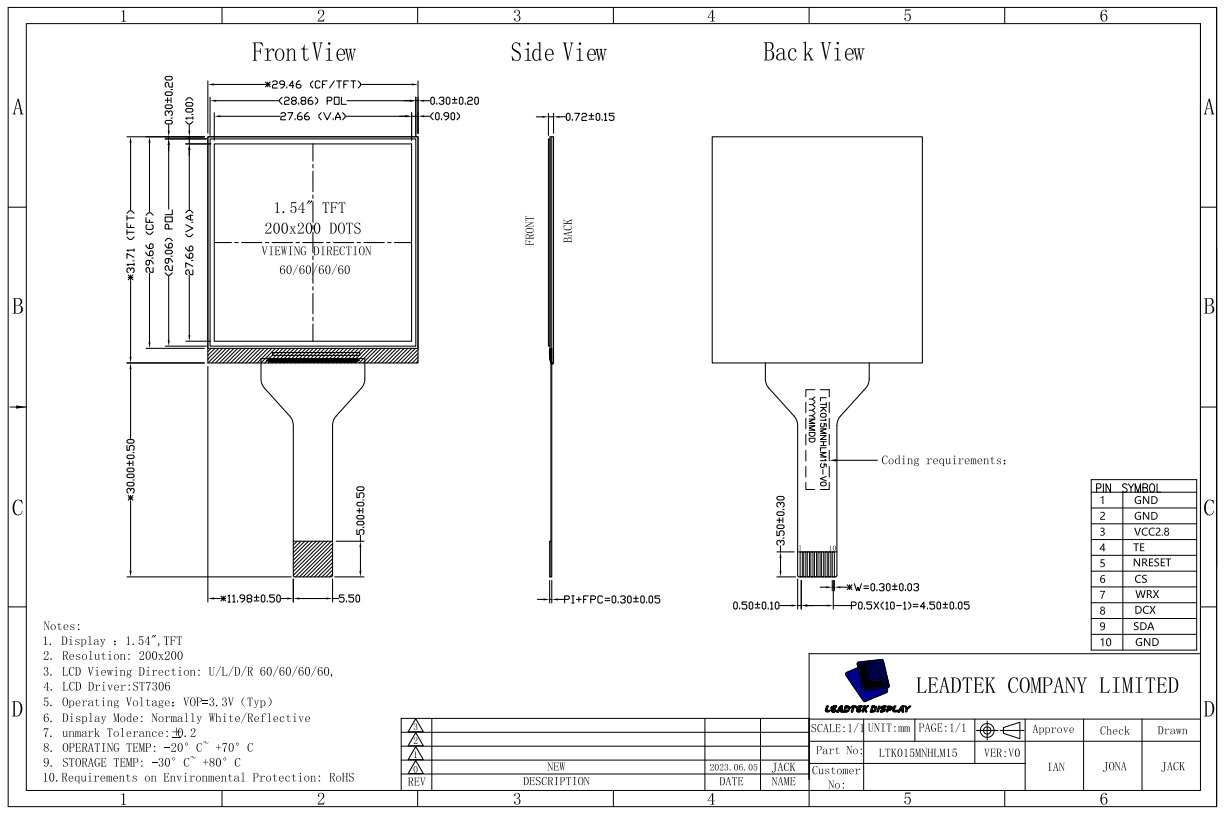

Drawing of 1.54 inch Paper Display 200*200 Viewing direction, as below:
