Leadtek new product 2.8 Inch 240*320 Transflective Display
Leadtek presents a 2.8-inch IPS LCD module that combines Transflective technology with vibrant 16.7M-color output (240×320 resolution) for superior visibility in any lighting condition. With a brightness of 55 cd/m²and 7.5% reflectivity, this display ensures excellent outdoor readability while minimizing power consumption (only 120mW).
The IPS panel delivers wide viewing angles (60/60/60/60) and consistent color performance, supported by the ST7789T3 driver IC via a 4-line SPI interface.
Ideal for cycling computers, and rugged portable equipment, the module balances clarity, efficiency and reliability for demanding applications.

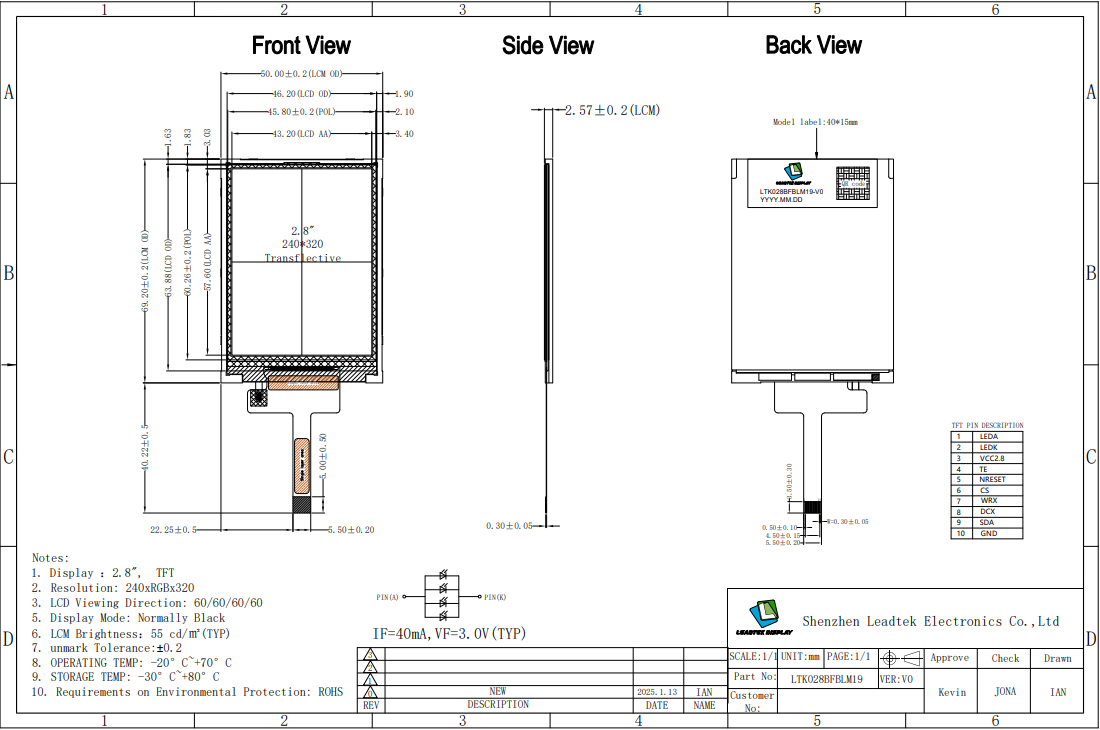

- Product Details
Size(inch) |
2.8 |
Part Number. |
LTK028BFBLM19-V0 |
Display Type |
Transflective |
Panel Type |
IPS |
Resolution |
240*320 |
Luminance (cd/m²) |
55 |
Viewing Direction |
60/60/60/60 |
Interface |
4Line-SPI |
Display colors |
16.7M,full color |
Reflectivity |
7.5% |
Power Consumption |
120 mW |
Driver IC |
ST7789T3 |
Active Area (mm) |
43.20*57.60 |
LCM Module Size (mm) |
50.00*69.20*2.57 |
Operating Temperature |
-20~+70℃ |
Storage temperature |
-30~+80℃ |
