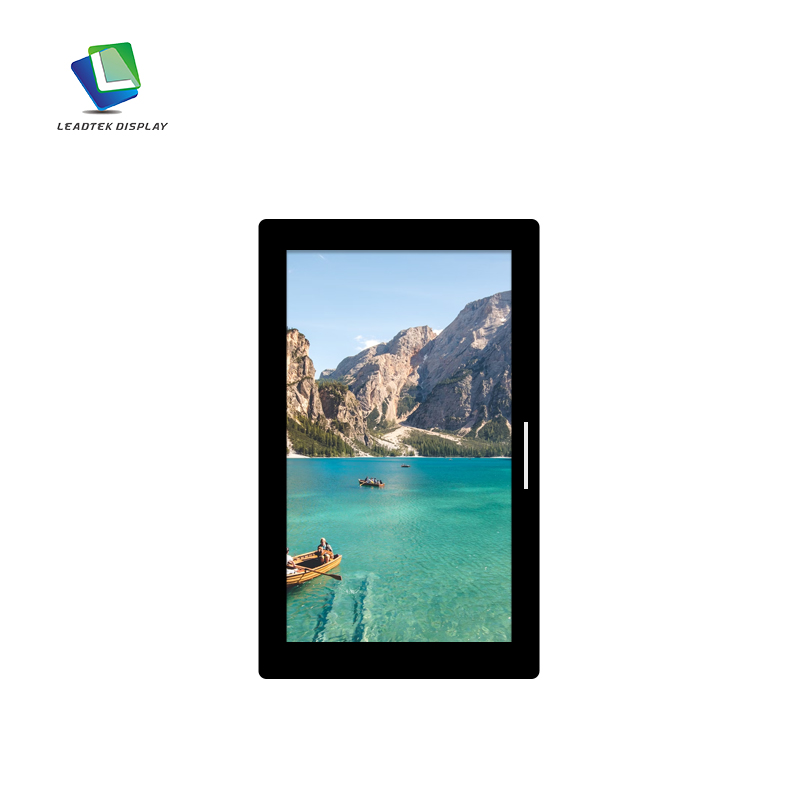

LTK070P4077TX-QC-V4 with 370 Luminance Square 720*1280 Resolution IPS TFT LCD Display Resolution for Smart Industry
Leadtek LTK070P4077TX-QC-V4 7-inch RGB display, boasts a square shape and a vibrant Normally Black display mode. Featuring a resolution of 720 (H) * RGB * 1280 (V). Facilitated through a 4-Line MIPI Interface. With a luminance of 370cd/㎡ (TYP). Active area spans 86.94mm (H) * 154.56mm (V). Its compact outline dimensions measure 107.80mm (W) × 179.16mm (H) × 4.15mm (T), making it suitable for various applications, particularly in smart industries.
- Product Details
PRODUCT PARAMETERS:
| Model number |
LTK070P4077TX-QC-V4 |
| Viewing Direction | ALL |
| Outline dimension(mm) |
107.80W) ×179.16(H) ×4.15(T)
|
| LCD AA(mm) |
86.94（H）*154.56(V)
|
| Interface |
4Line MIPI Interface
|
| Brightness | 370 |
|
Operating Temperature |
-20~70 degree |
| Storage Temperature | -30~80 degree |

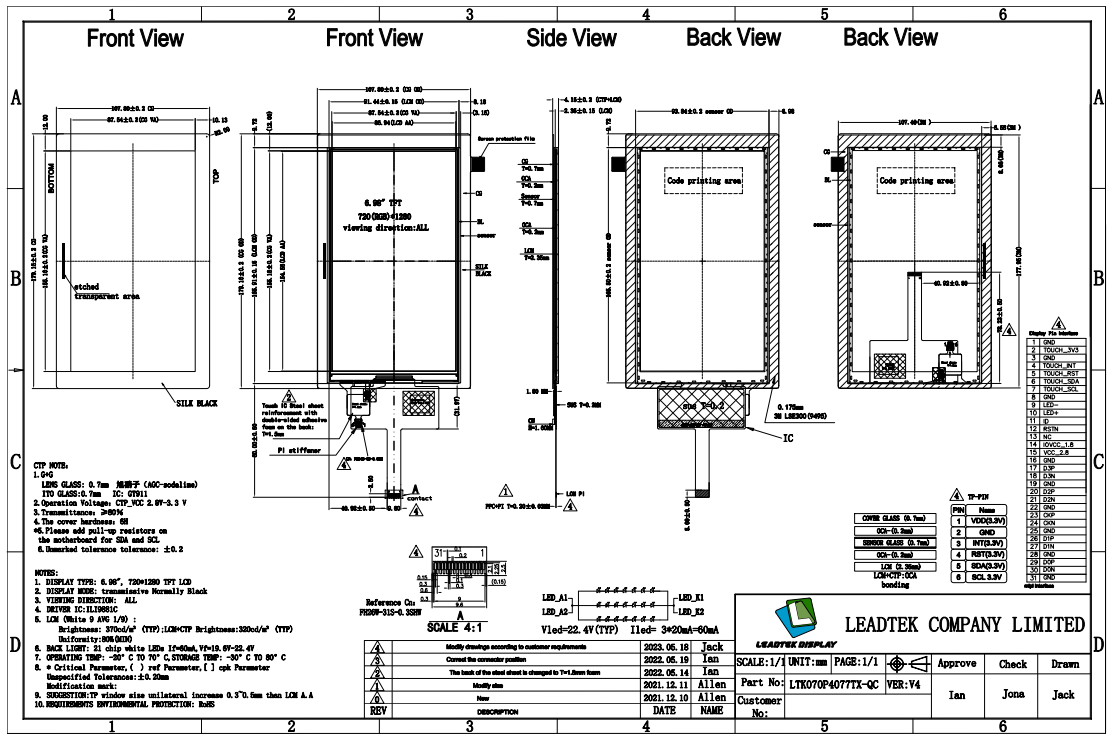

PRODUCT DRAWING:
