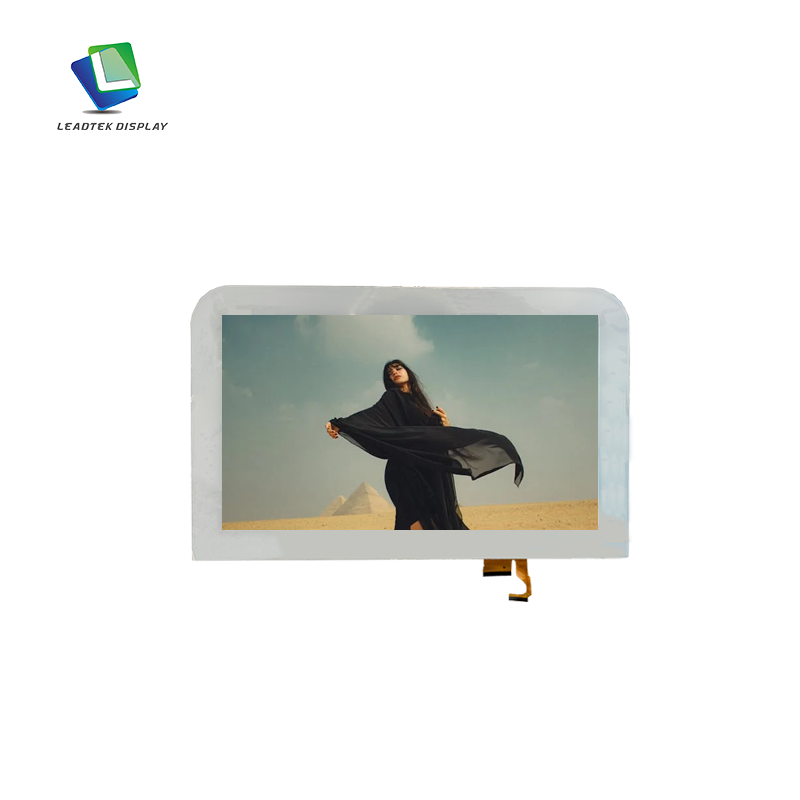

High-Resolution 18.5" IPS LCD for Industrial Applications
This 18.5" IPS LCD module, designated LTK185FHBCT12-V1, boasts a sharp 1920*1080 resolution and utilizes LVDS interface to deliver 270.0 cd/m² luminance. It features a capacitive touch panel (CTP) and is engineered to operate effectively in temperatures ranging from -0℃ to +60℃, with storage conditions from -10℃ to +60℃. Tailored for smart industrial environments, it provides clear, high-quality visuals and reliable performance across various operational temperatures.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 18.5 |
| Part Number. | LTK185FHBCT12-V1 |
| Display Mode | IPS |
| Resolution | 1920*1080 |
| Interface | LVDS |
| Luminance (cd/m²) | 270 |
| Active Area (mm) | 408.96*230.04 |
| Outline Dimension (mm) | 477.00*297.30*13.65 |
| Touch Screen | CTP |
| Operating Temp | -0~+60℃ |
| Storage Temp | -10~+60℃ |

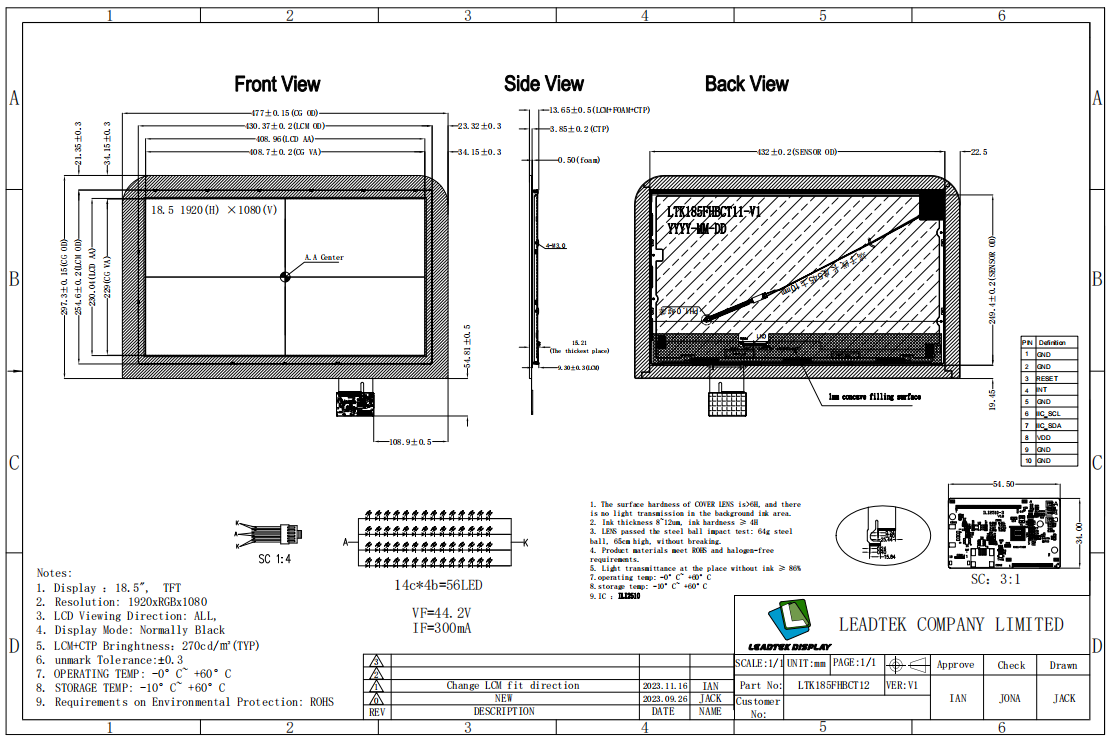

PRODUCT DRAWING
