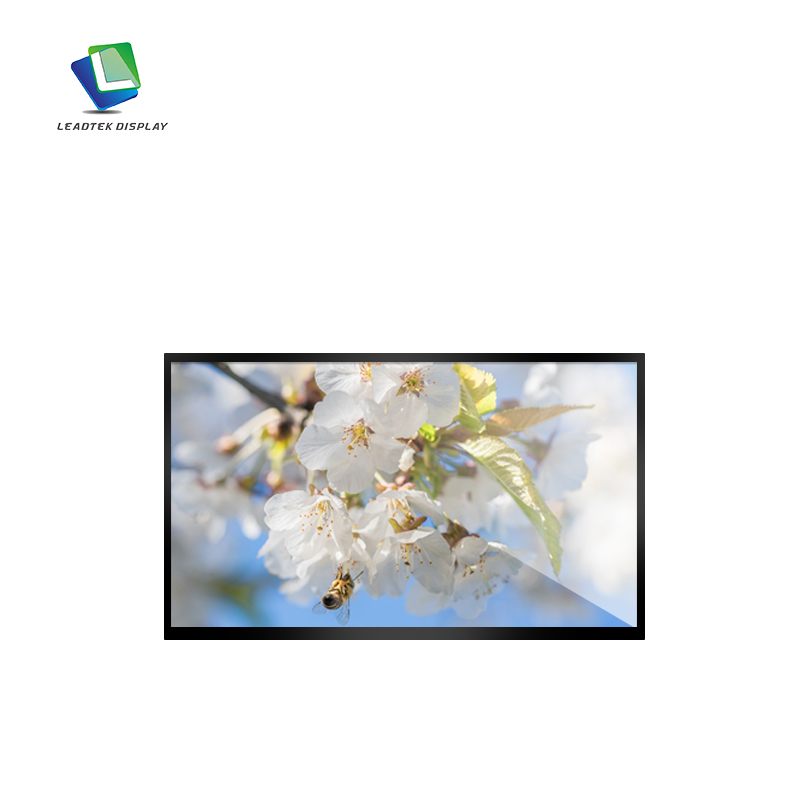

Normally Black 11.6 Inch LCD With 1920*1080 Resolution eDP Interface Display Module
LTK116FHBLM01-V0 color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 11.6 (16:10) inch diagonally measured active display area with (1920 horizontal by 1080 vertical pixel) resolution. (S)
- Product Details
Product Parameters:
Model Number | LTK116FHBLM01-V0 |
Size | 11.6 inch |
Resolution | 1920*1080 |
Interface | eDP |
Outline dimension (mm) | 270.37*159.79*2.7 mm |
Active area (mm) | 256.32*144.18 mm |
Brightness | 3300nits |
Operating temperature: | -10℃ ~ +50℃ |
Storage temperature: | -20℃ ~ +60℃ |
Product Features:
![](/uploadfile/userfiles/image/20220825/20220825193015_68008.jpg)
