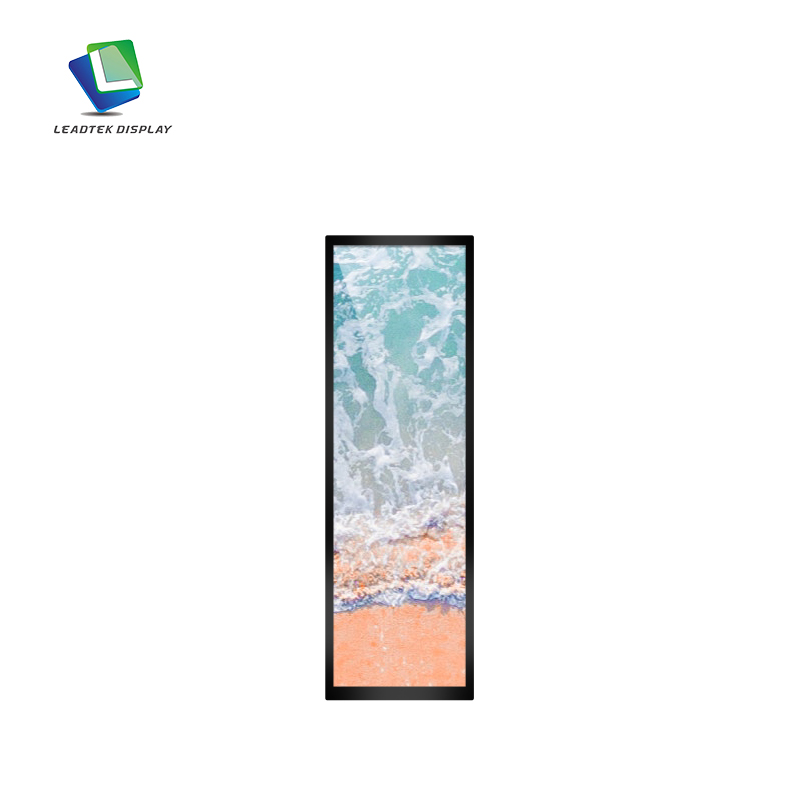

Normally black TFT LCD with 8.8 Inch 480*1920 Resolution MIPI Interface With 600nits Display Module for Smart Home
LTK088FHHLM01-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT asa switching device. This model is composed of a TFT LCD panel and a driving circuit.This Touch Panel Module has a 8 inch diagonally measured active display area with (480*1920 Landscape pixel) resolution.(S)
- Product Details
Specification of Normally black TFT LCD with 8.8 Inch 480*1920 Resolution MIPI Interface With 600nits Display Module for Smart Home
|
Mode |
LTK088FHHLM01-V0 |
|
Display Mode |
IPS |
|
Resolution |
480*1920 |
|
Interface |
MIPI |
|
Brightness |
600 cd/㎡ |
|
Active Area(mm) |
54.72* 218.88mm |
|
Outline Dimension(mm) |
64.0*231.10*4.64mm |

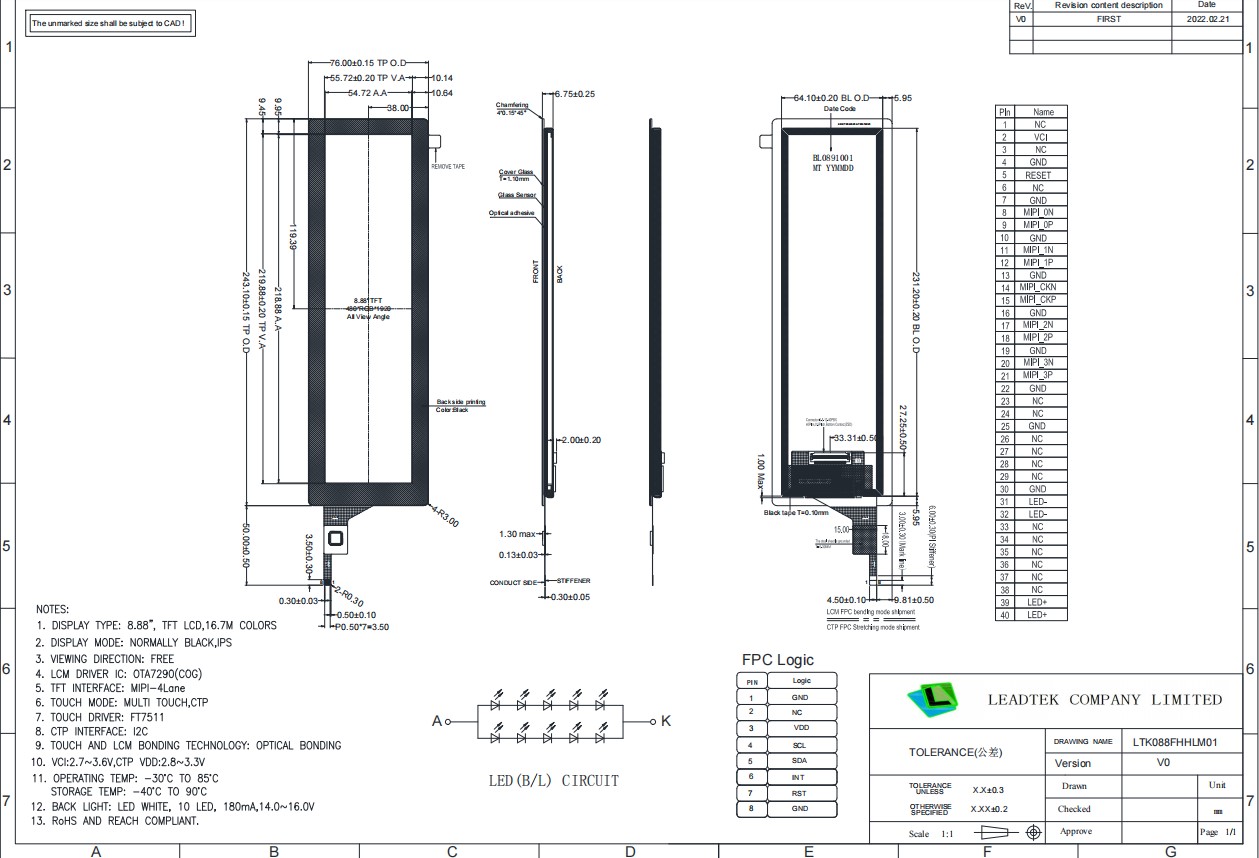

Dimension of Normally black TFT LCD with 8.8 Inch 480*1920 Resolution MIPI Interface With 600nits Display Module for Smart Home
