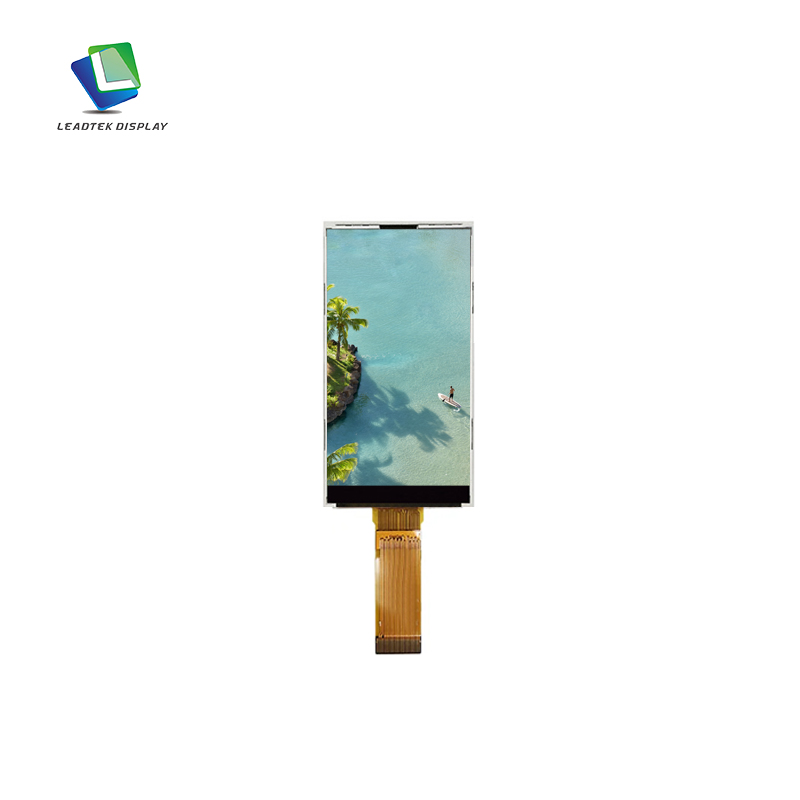

Reflective 2.1 Inch LCD TN Display 122*250 Resolution SPI Interface for Handheld Devices
Leadtek Display model LTK021MNHLM11-V0 is a mono active matrix thin film
transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a
switching device. It is a reflective type display operating in the total reflection.
This TFT LCD has a 2.13 inch diagonally measured active display area with 122
horizontal by 250 vertical pixel resolution.(D)
- Product Details
Specification of Reflective 2.1 Inch LCD TN Display 122*250 Resolution SPI Interface for Handheld Devices
| 1 | P/N | LTK021MNHLM11-V0 |
| 2 | Type of LCD panel | 2.1" Reflective LCD |
| 3 | View angle | TN 60/60/60/60 |
| 4 | Cell Type | HSD |
| 5 | Interface | MCU/SPI |
| 6 | Resolution | 122*250 |
| 7 | Color | B/W, 2 color |
| 8 | Driver IC | ST7306-G6 or ST7305 |
| 9 | Outline Dimensional(mm) | 27.1*56.2*0.8 |
| 10 | Active Area(mm) | 23.668*48.5 |
| 11 | Operating Temperature | -20℃/70℃ |
| 12 | CTP | Without |
| 13 | Application | Handheld Devices |
| 14 | The general tolerance is ±0.2mm | |
| 15 | All materials in the figure are RoHS compliant. | |

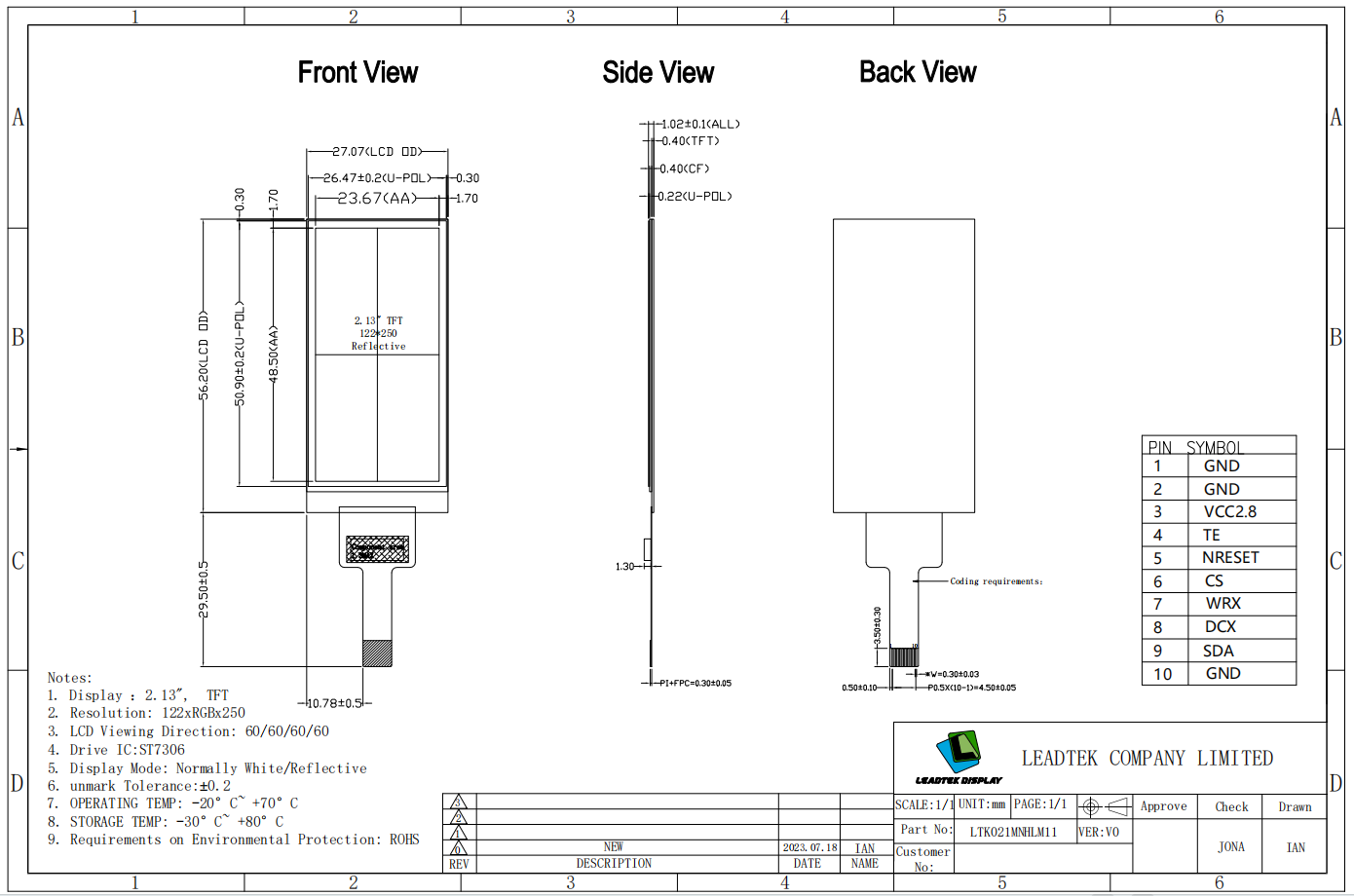

Dimension of Reflective 2.1 Inch LCD TN Display 122*250 Resolution SPI Interface for Handheld Devices
