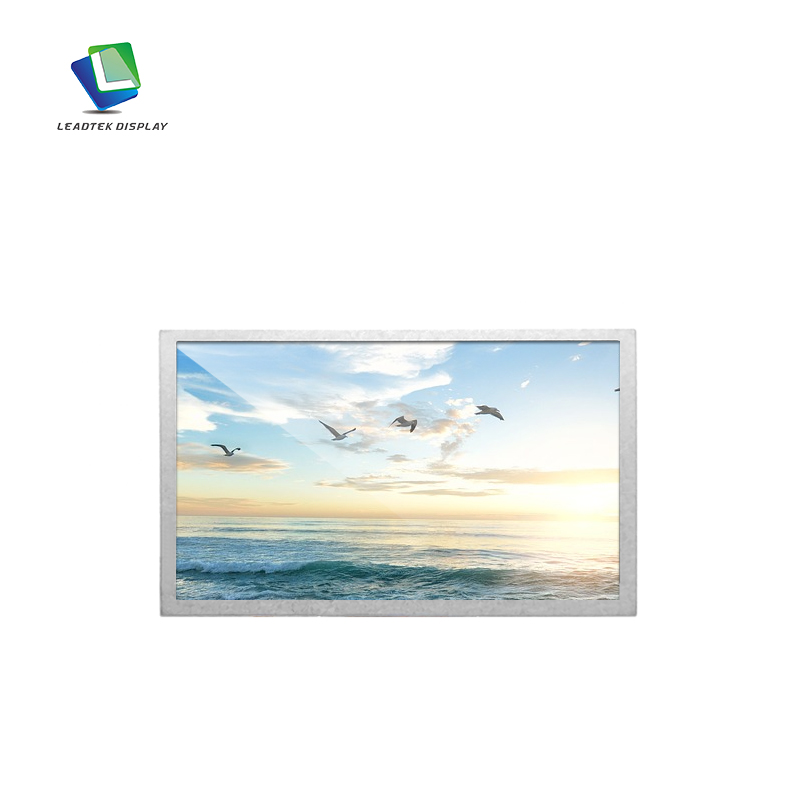

Resolution 1024*600 7 inch TFT LCD display LVDS interface LCD display module
LTK070WSHLM15-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit. This TFT LCD has a 7 (16:9) inch diagonally measured active display area with (1024 horizontal by 600
vertical pixel) resolution.
- Product Details
Specification of Resolution 1024*600 7 inch TFT LCD display LVDS interface LCD display module
PN#
LTK070WSHLM15-V0
Display type
7 inch TFT LCD
Display mode
IPS
Resolution
1024*600
Interface
LVDS
Luminance
700nits
LCD AA (mm)
154.21*85.92
LCD OD (mm)
164.96*99.60*5.52

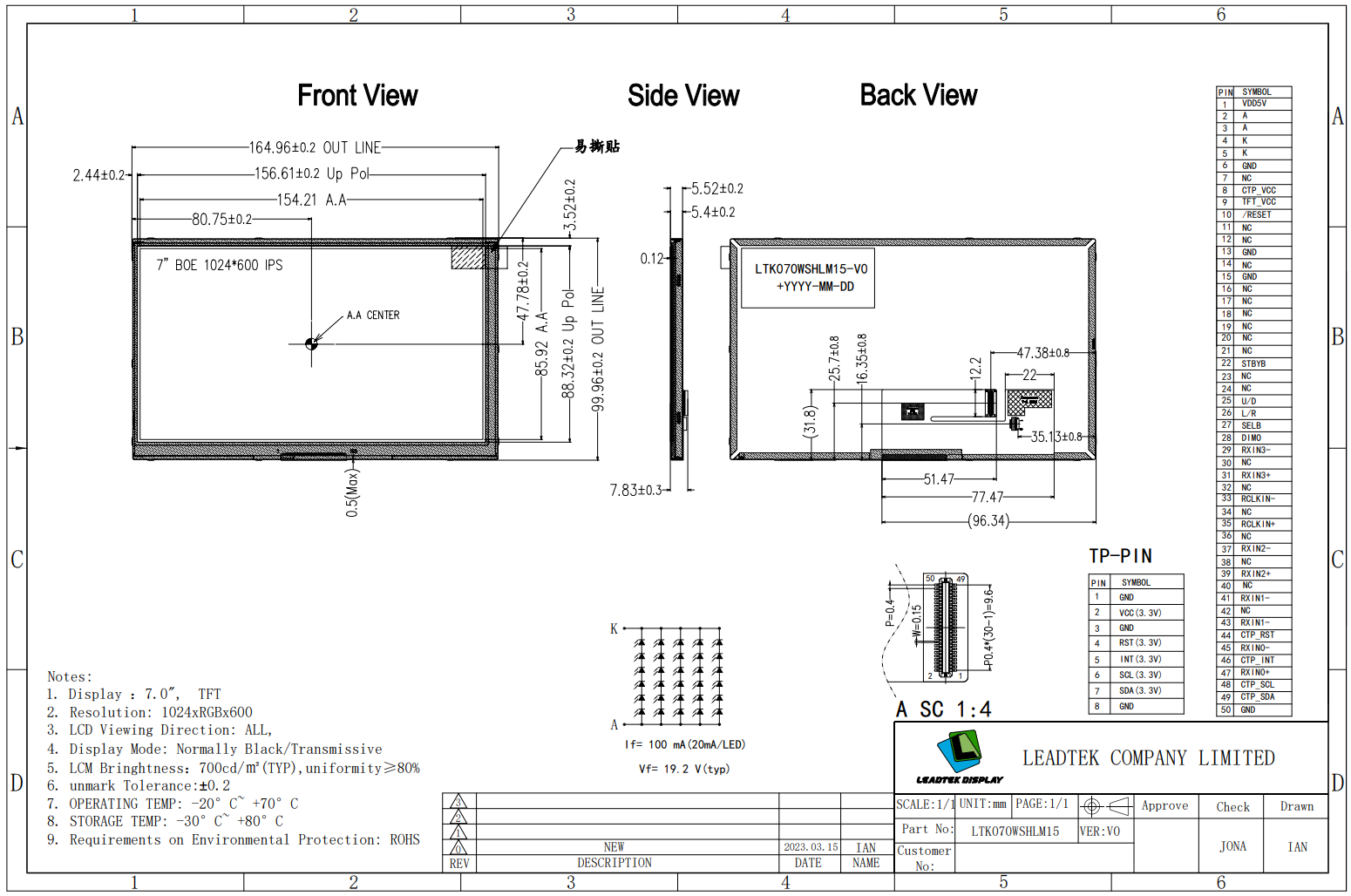

Drawing of Resolution 1024*600 7 inch TFT LCD display LVDS interface LCD display module
