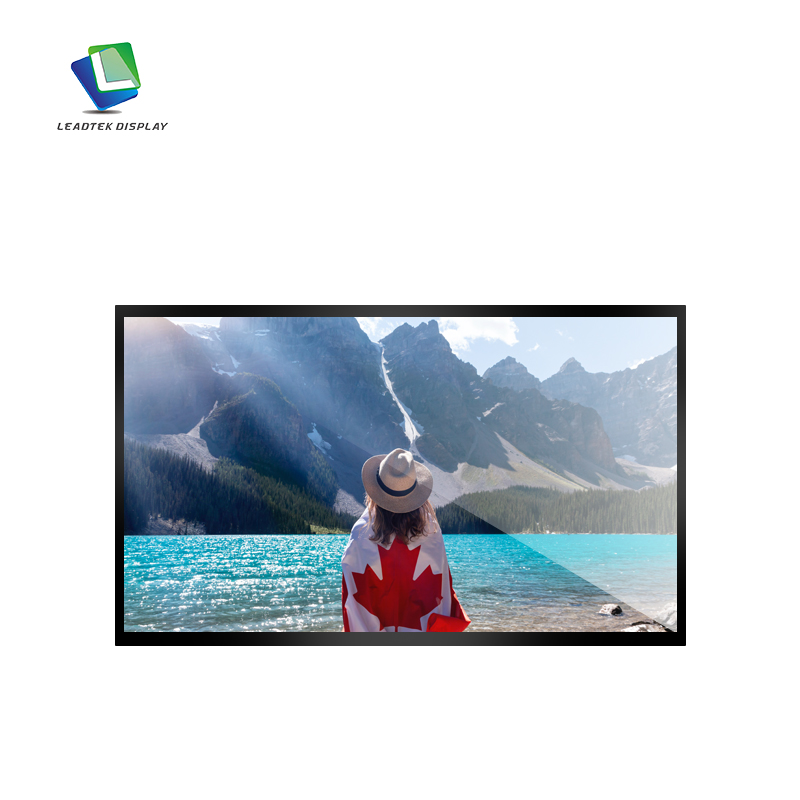

TFT LCM 21.5 inch IPS 1920*1080 resolution LVDS interface tft lcd panel
LTK215S3015W-V0 is color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 21.45 inch diagonally measured active display area with (1920 horizontal by 1080 vertical pixel) resolution.（D）
- Product Details
| 1 | P/N | LTK215S3015W-V0 |
| 2 | Type of LCD panel | 21.5” TFT LCD |
| 3 | Resolution | 1920*1080 |
| 4 | Display Type | Transmissive / CSOT |
| 5 | View angle | IPS |
| 6 | Interface | LVDS |
| 7 | Driver IC | Orignial FOB |
| 8 | View Shape | landscape |
| 9 | Brightness of LCD panel | 300 |

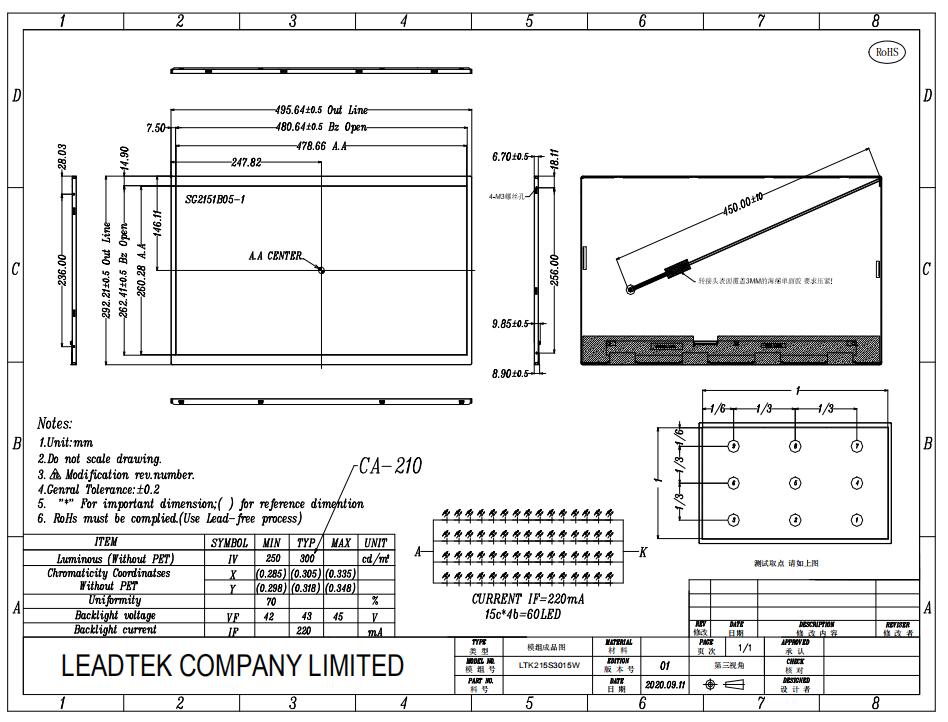

| 10 | LCM Dimension(mm) | 495.64 * 292.21 *8.90 |
| 11 | Active Area(mm) | 478.66 * 260.28 |
| 12 | Touch Panel | Without |
| 13 | Operating Temperature | -10-+50℃ |
| 14 | Storage Temperature | -20-+60℃ |
| 15 | The general tolerance is ±0.2mm | |
| 16 | All materials in the figure are RoHS compliant. | |
