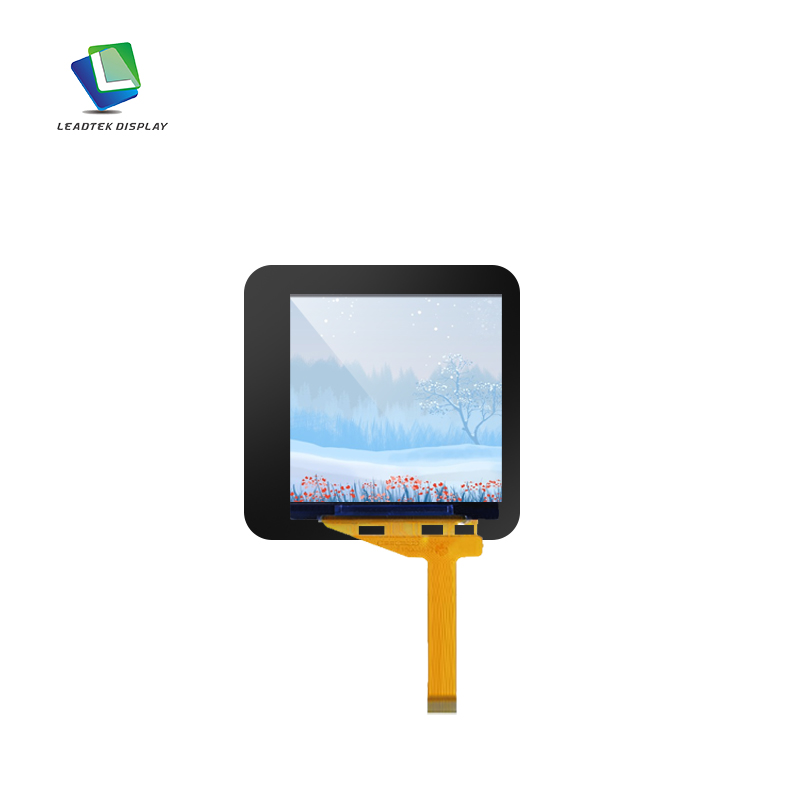

1.54 Inch 240*240 Touch Screen Square TFT LCD Display
The LTK015QVHCT04-V3 is a 1.54-inch IPS touch display with a 240x240 resolution, offering vivid visuals and wide viewing angles for smart home applications. It features an SPI interface with expandable MCU/SPI supportand acapacitive touch panel (CTP) with IIC interface, powered by the CST816D driver IC.
With 300 cd/m² brightness, adurable GF touch structure, and anoperating temperature range of -10°C to 60°C, this display is ideal forsmart home control panels, IoT devices, and interactive interfaces.
- Product Details
|
Part Number. |
LTK015QVHCT04-V3 |
| Size(inch) | 1.54 |
|
Display Mode |
IPS |
|
Viewing Direction |
80/80/80/80 |
|
Resolution |
240*240 |
|
Interface |
SPI |
|
Expandable interface |
MCU/SPI |
|
Luminance (cd/m²) |
300 |
|
TFT Driver IC |
ST7789T3 |
|
Active Area(mm) |
27.72*27.72 |

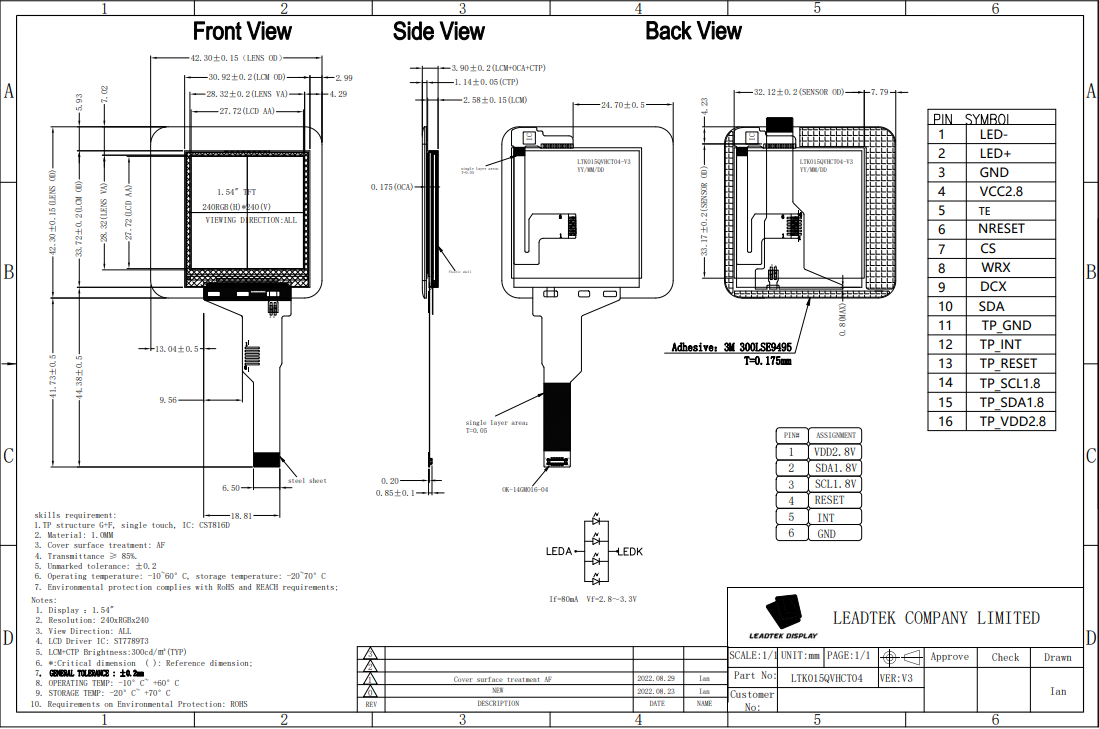

| LCM Outline Dimension(mm) |
30.92*33.72*2.58 |
|
LCM+CTP Outline Dimension(mm) |
42.30*42.30*3.90 |
|
Touch Screen |
CTP |
|
CTP Type |
G+F |
|
CTP Driver IC |
CST816D |
|
CTP Interface |
IIC |
|
Operating Temp |
-10~+60℃ |
|
Storage Temp |
-20~+70℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
Related Products
-
10.1 inch TFT display module, 1200X1920 resolution,MIPI interface,... -

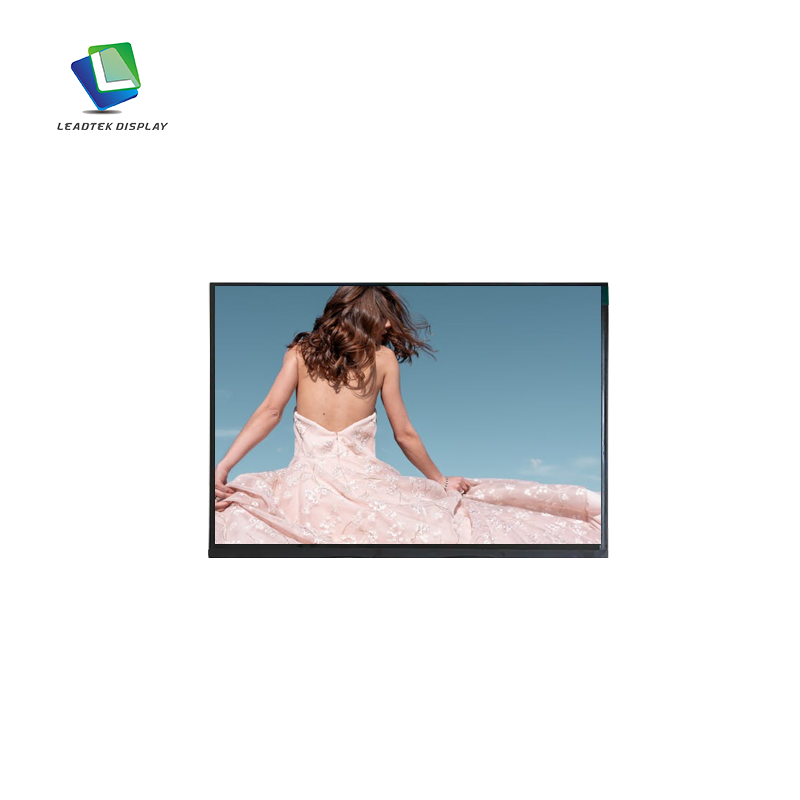

10.1 inch 1920*1200 TFT LCD Module with high brightless 1000nits -

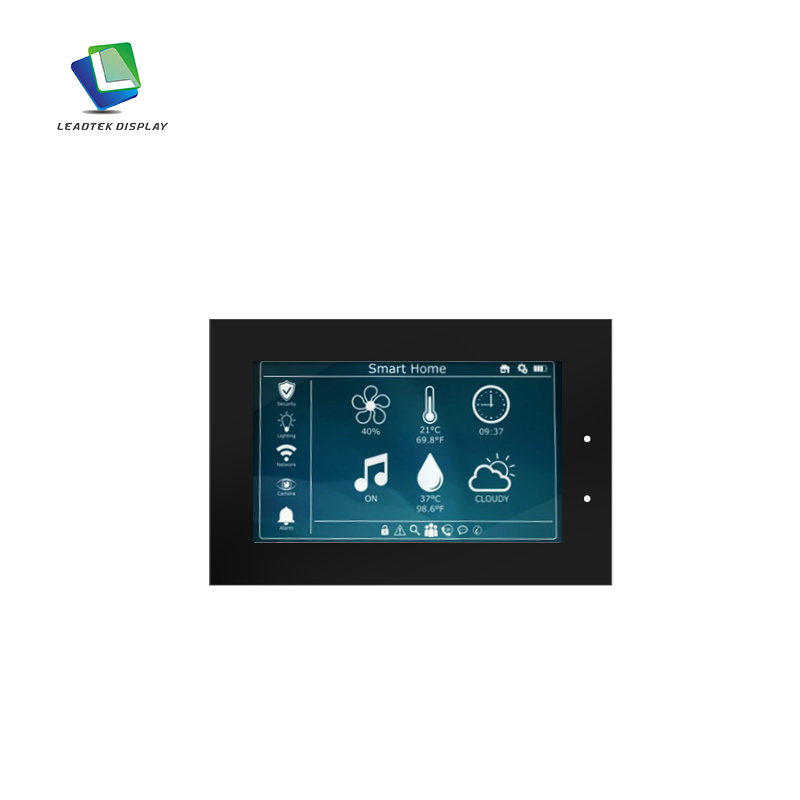

RGB Interface 7 inch 1024*600 Resolution TFT LCD Display for... -
