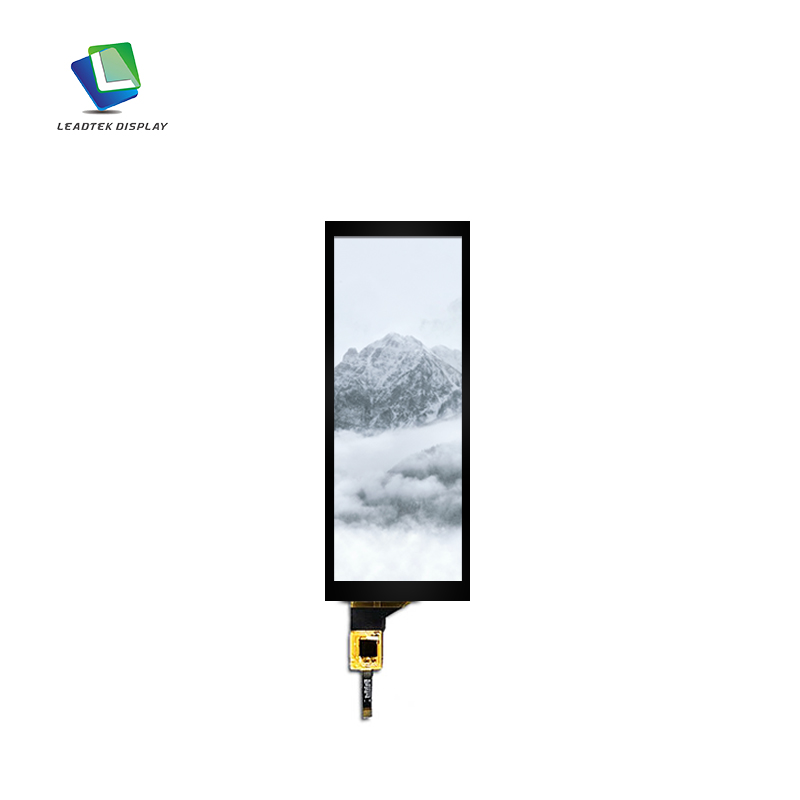

6.2 Inch TFT LCD 360*960 IPS Panel MIPI Touch Display
LTK062MNBCT10-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
This model is composed of a TFT LCD panel and a Touch Panel.This TFT LCD has a 6.2 inch diagonally measured active display area with (360*960 Portrait pixel) resolution.(J)
This model is composed of a TFT LCD panel and a Touch Panel.This TFT LCD has a 6.2 inch diagonally measured active display area with (360*960 Portrait pixel) resolution.(J)
- Product Details
|
Module No |
LTK062MNBCT10-V0 |
| Size(inch) | 6.2 |
|
Resolution |
360*960 |
|

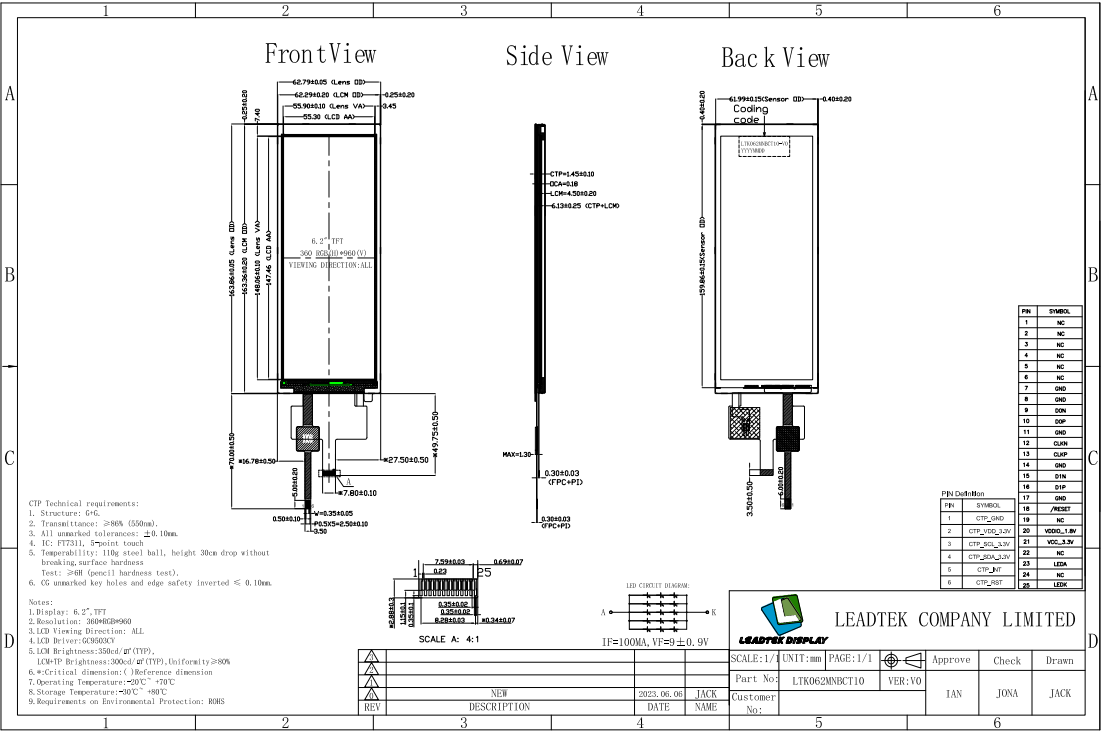

Outline Dimension |
62.79*163.86*6.13 |
|
Active Area |
55.30*147.46 |
|
luminance (cd/m²) |
300 |
|
Interface |
MIPI |
| Touch Screen | CTP |
|
Touch screen structure |
GG |
|
Touch screen interface |
IIC |
|
Operating Temp |
-20~+70℃ |
|
Storage Temp |
-30~+80℃ |
