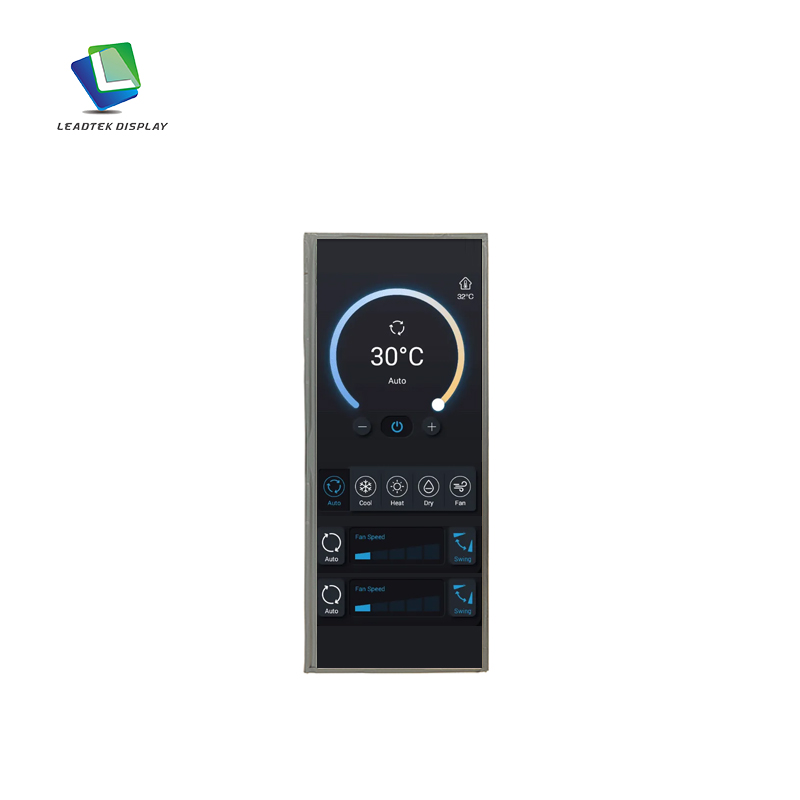

12.3 inch 720*1920 TFT LCD display Module use for Smart Home Control System
LTK123FHHLM14-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a Smart Home Control System. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 12.3 inch diagonally measured active display area with (720 horizontal by 1920 vertical pixel) resolution. (E)
- Product Details
| Model number | LTK123FHHLM14-V0 |
| Size(inch) | 12.3 |
| Resolution | 720*1920 |
| Viewing Direction | IPS |
|
Interface |
MIPI |
|
Luminance (cd/m²) |
500 |
| Active Area (mm) |
109.51*292.03 |
|
Outline Dimension (mm) |
124.20*303.13*6.05 |
|
Operating Temperature |
-20~+70℃ |
| Storage Temperature | -30~+80℃ |
