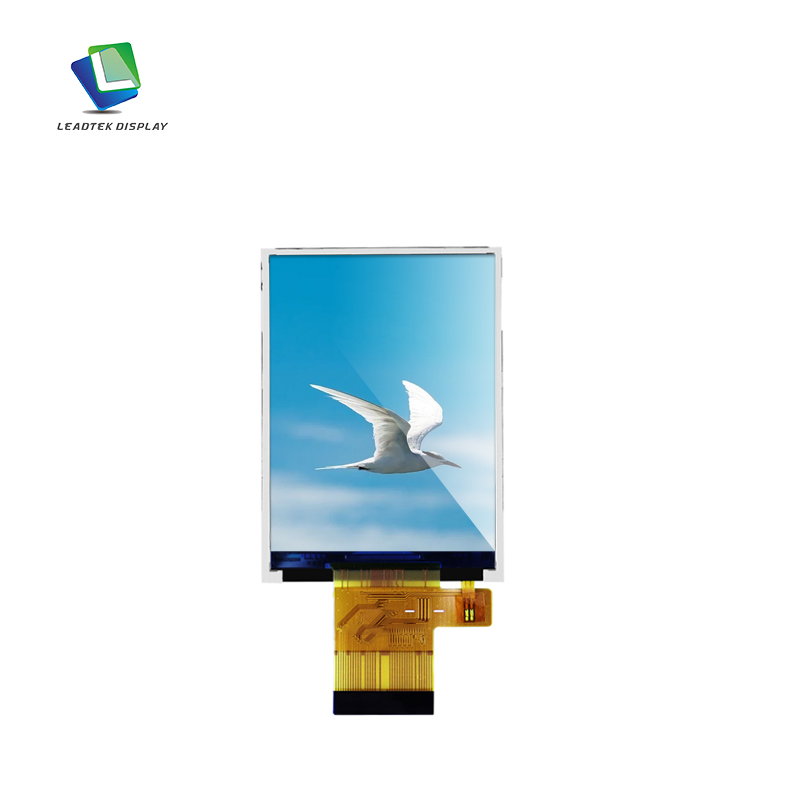

Portrait 2.8 inch TFT LCD with 240*320 resolution MCU Interface
LTK028QVHLM05-V1 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit. This TFT LCD has a 2.8 inch diagonally measured active display area with (240 horizontal by 320 vertical pixel) resolution.
- Product Details
| Model Number: | LTK028QVHLM05-V1 |
| Size: | 2.8" |
| Cell type： | IPS |
|
Interface： |
MCU |
|
Expandable interface： |
SPI/RGB |
| Resolution： | 240*320 |

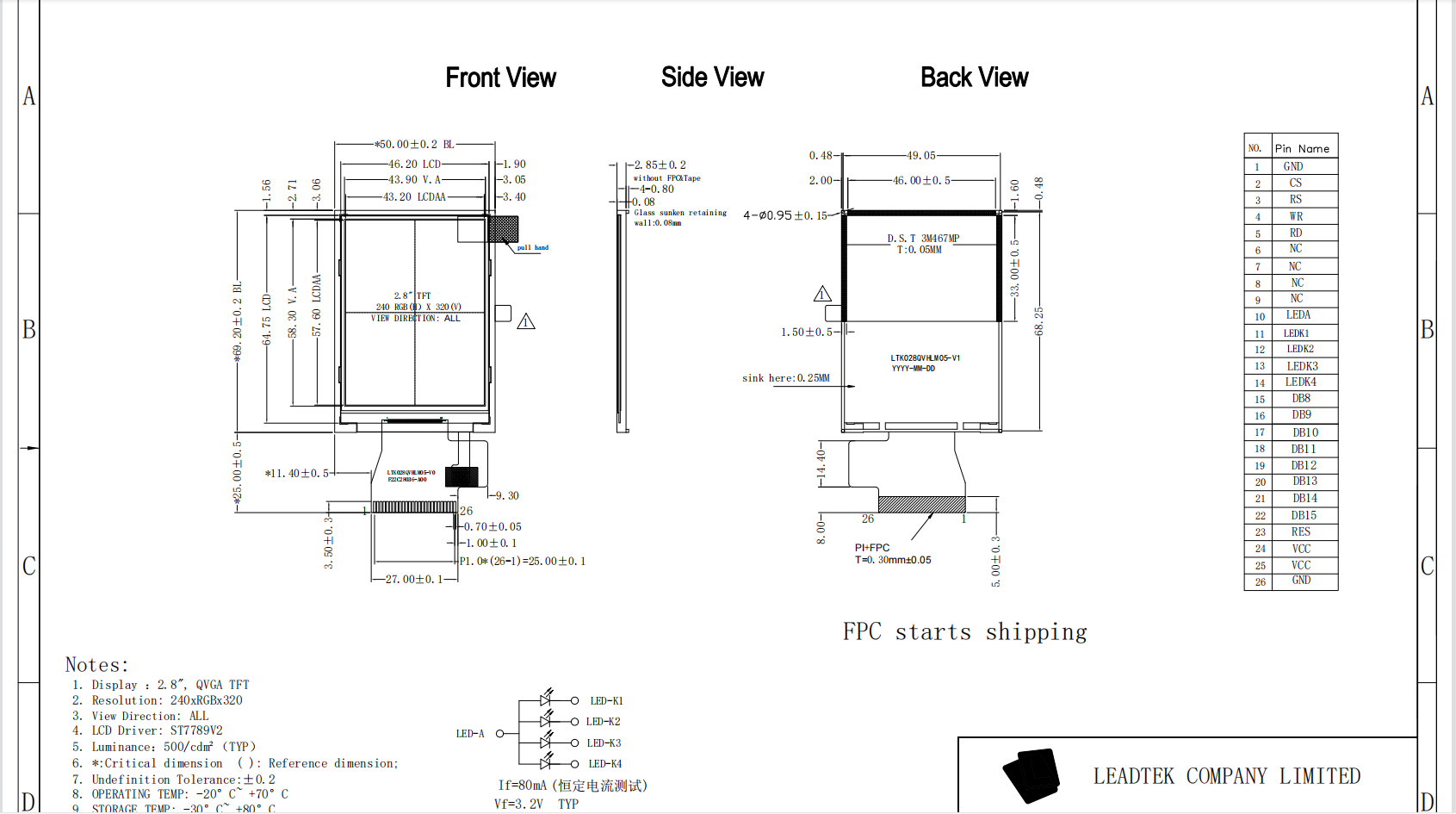

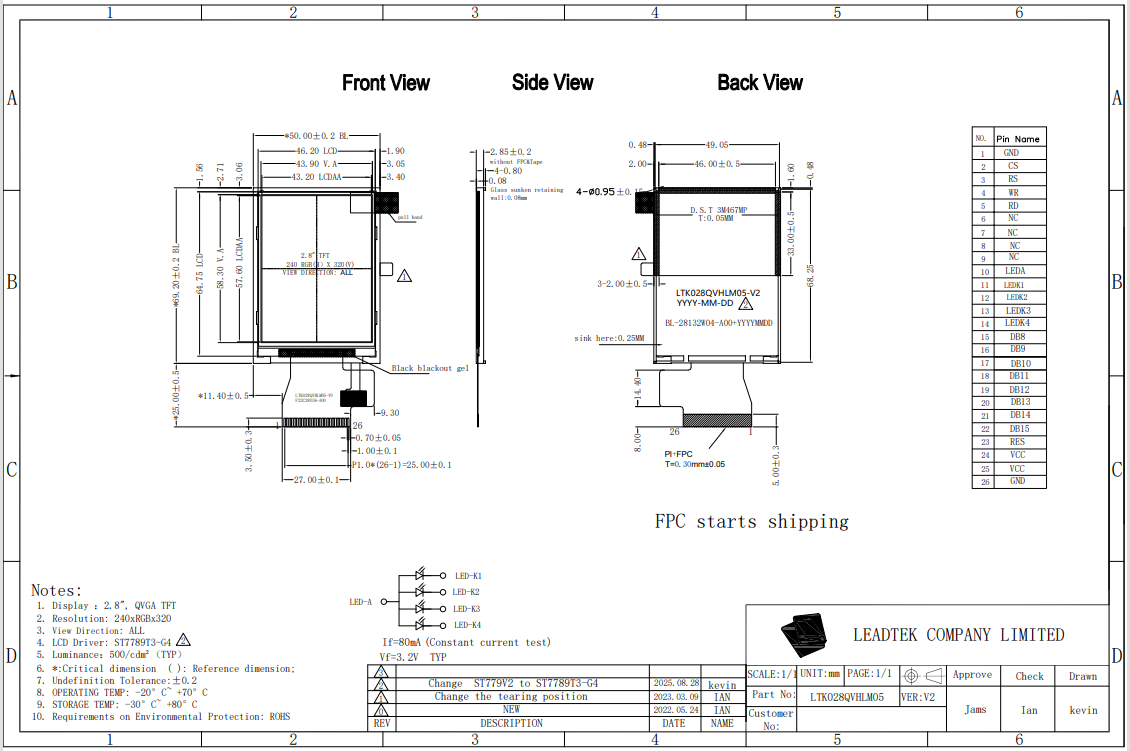

| Outline Dimension(mm): | 50*69.2*2.85 |
| Active Area(mm)： | 43.2*57.6 |
| TFT Driver IC: | ST7789V2 |
| LCD Luminance: | 500 |
| Operating temperature: | -20℃~ +70℃ |
| Storage temperature: | -30℃~ +80℃ |
