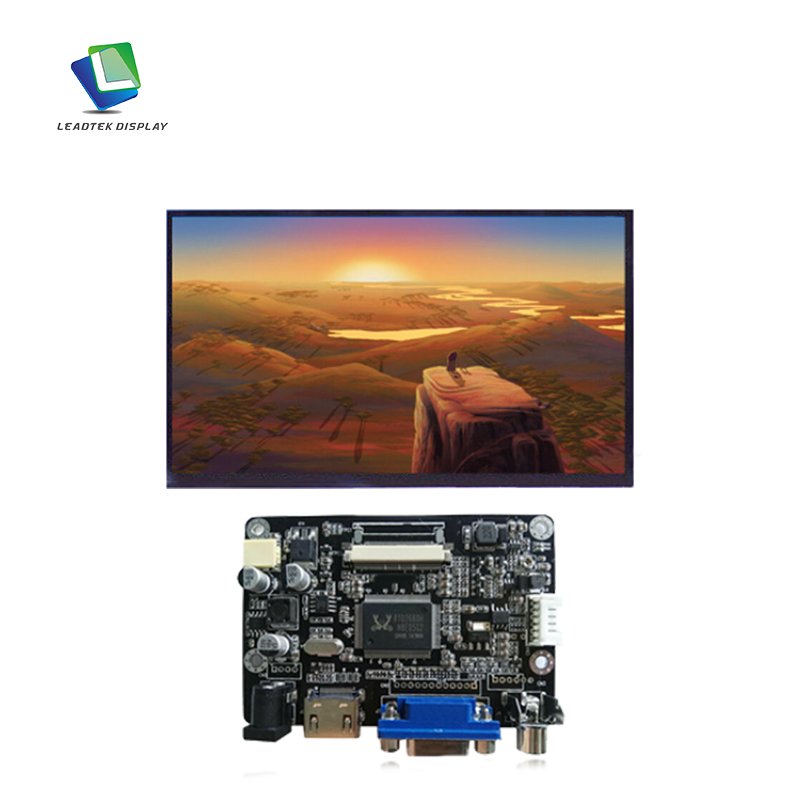

8.0 Inch 1200*1920 TFT Touch Display with HDMI LCD Controller Board

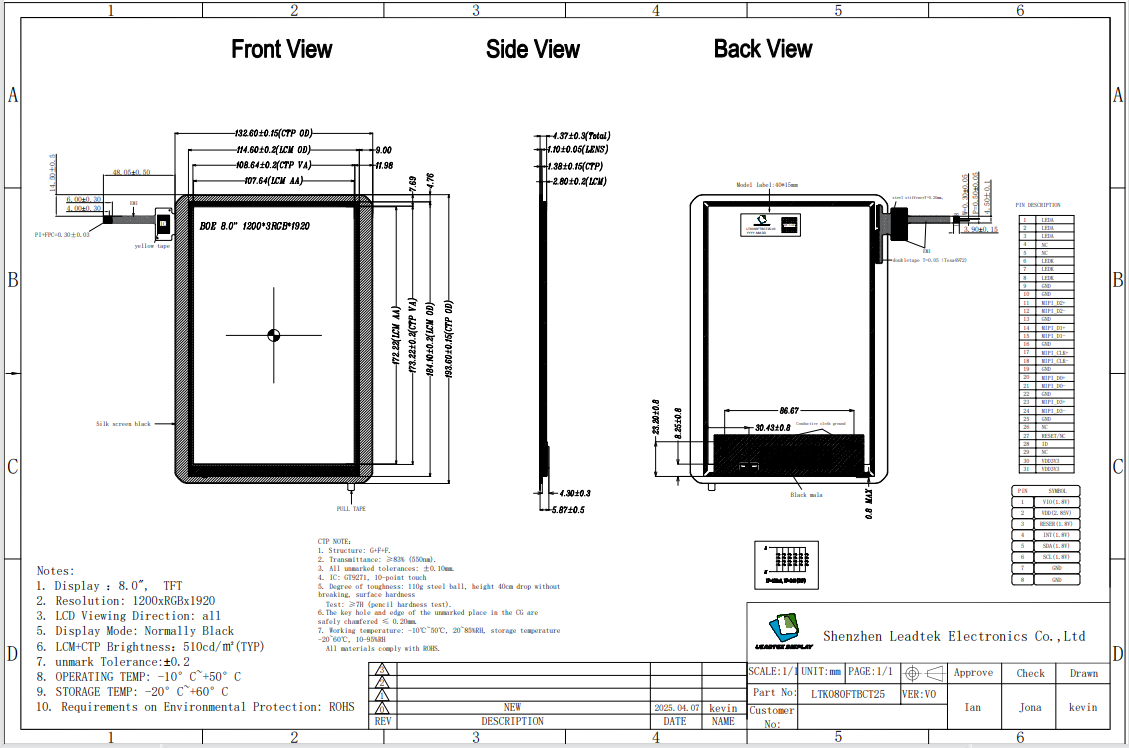

The LTK080A60A004T-HT-V0 model has an IPS viewing angle and a resolution of up to 1200*1920, which can provide clear viewing. The size is 132.60*193.60*3.60(mm), and the effective area is 107.64*172.22(mm), with ample display space. It is connected via the MIPI interface. The operating temperature range is-0~+50℃and the storage temperature range is -10~+60℃, suitable for application in smart industry.
- Product Details
|
Model number |
LTK080A60A004T-HT-V0 |
| Size(inch) | 8.0 |
|
Resolution |
1200*1920 |
|
Viewing Angle |
IPS |
|
LCM A.A (mm) |
107.64*172.22 |
|
LCM O.D (mm) |
131.60*192.60*2.05 |
|
LCM Luminance |
400 |
|
Signal Input |
MIPI |
|
Signal Output |
HDMI |
|
PCB Outline(mm) |
75.22*46.8*10.6 |
|
Operating Temp |
-0~+50℃ |
|
Storage Temp |
-10~+60℃ |
|
Power Supply |
12V/3A |
|
Touch Screen |
CTP |
|
TPM V.A (mm) |
108.64*173.22 |
|
TPM O.D (mm) |
132.60*193.60*3.60 |
|
TPM Luminance |
340 |
| Accessories/ Features | OSD Key Pad/ LVDS Cable |
