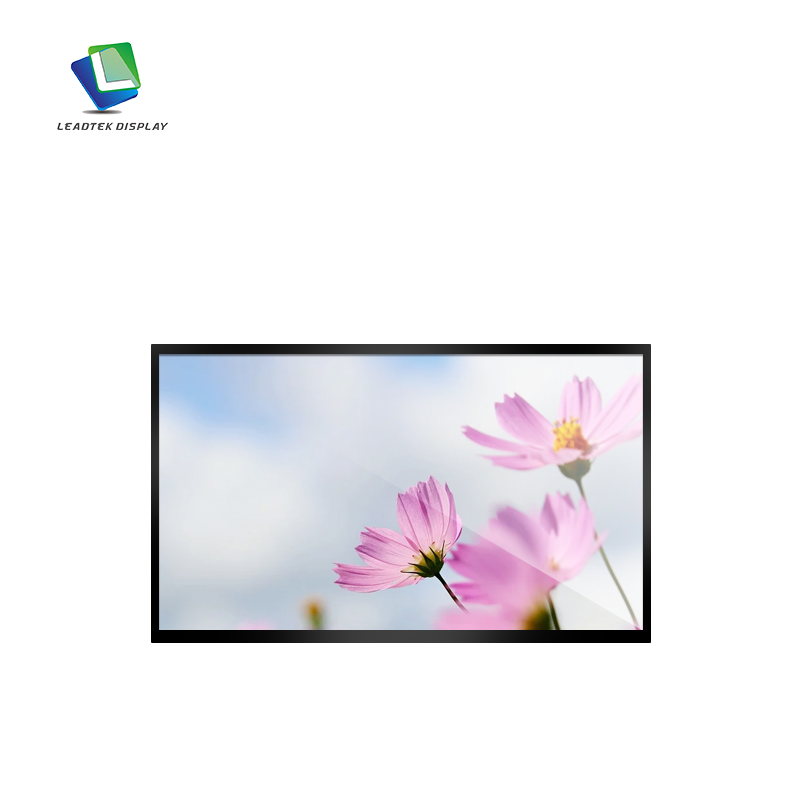

7 inch TFT LCD with 1024*600 Resolution LVDS Interface LCD Display
LTK700WS12H-V0 is color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit. This TFT LCD has a 7 inch diagonally measured active display area with (1024*600) resolurtion.(D)
- Product Details
| Model Number： | LTK700WS12H-V0 |
| Size： | 7.0" |
| Cell type： | HSD/ IPS |
| Driver IC: | / |
| Interface： | LVDS |
| Resolution | 1024*600 |
| LCD Active area： | 154.21*85.92 |
| Outline dimension (mm)： | 164.9*100.0*3.3 |
| Luminance: | 300 |
| Operating temperature: | -20℃ ~ +70℃ |
| Storage temperature: | -30℃ ~ +80℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
